Gear Tooth Caliper
Keywords: gear tooth measurement gears measurement
Gear tooth measurement(or gears measurement) can be used for measuring gear tooth thickness

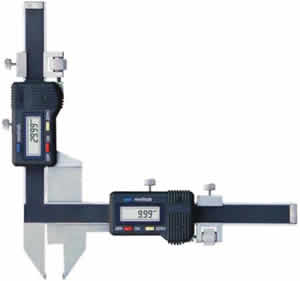

Digital Gear Tooth Caliper

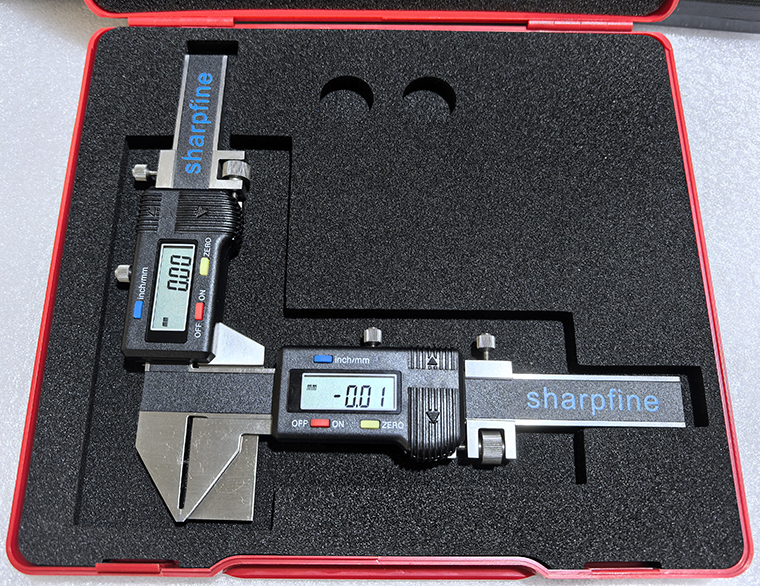

Gear caliper or gear tooth calipers Type-A
To measure gears
Gear tooth measurement sketch
Gear caliper
• Gear tooth calipers are used formeasuring gear tooth thickness.
• Manual power on/off.
• Metric/Inch conversion.
• Zero setting at any position.
• With data output interface.
| Range | Resolution | L1 | L2 | a | b | d1 | d2 | Accuracy |
|---|---|---|---|---|---|---|---|---|
| m1-25 | 0.01mm/0.0005" | 156mm | 156.5mm | 30.5mm | 21mm | 13mm | 13mm | ±0.03mm |
| m5-50 | 0.01mm/0.0005" | 210mm | 185.5mm | 50.5mm | 50.5mm | 13mm | 13mm | ±0.03mm |
Gear Tooth Vernier Caliper
• Gear tooth vernier calipers can be used for measuring gear tooth thickness.

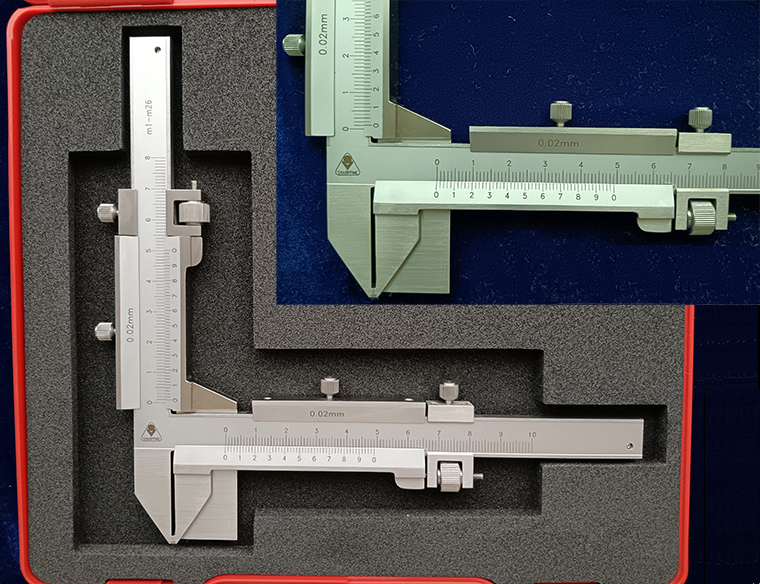

Gear caliper or gear tooth calipers Type-B
M1-16 gear tooth vernier caliper,M1-26 gear tooth vernier caliper, M15-55 gear tooth vernier caliper. Gear tooth measurement
| Range | Graduation |
|---|---|
| m1-16 | 0.02mm |
| m1-26 | 0.02mm |
| m15-55 | 0.02mm |
Gear caliper can be used to measure gear tooth thickness.
If you want to measure gears tooth by micrometer,
refer to Gear tooth micrometer; To measure gears common normal,refer to Disc micrometer; To measure
gear's pitch diameter,refer to Gear micrometer.
refer to Gear tooth micrometer; To measure gears common normal,refer to Disc micrometer; To measure
gear's pitch diameter,refer to Gear micrometer.
