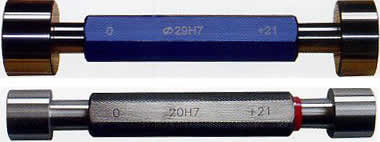

Limit plug gauge
Go no go plug gauge
Go No Go plug gauges conform: DIN7162
Limit plug gauge tolerance grade: IT6-IT12
Nominal Ø |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.8 | 6.0 | 14.0 | 22 | 30 | 38 | 48 | 68 | 90 | 120 | 220 | |
| 2.0 | 7.0 | 15.0 | 23 | 31 | 39 | 50 | 70 | 92 | 125 | 240 | |
| 2.5 | 8.0 | 16 | 24 | 32 | 40 | 52 | 72 | 95 | 130 | 250 | |
| 3.0 | 9.0 | 17 | 25 | 33 | 42 | 55 | 75 | 98 | 135 | 260 | |
| 3.5 | 10.0 | 18 | 26 | 34 | 44 | 58 | 80 | 100 | 150 | 280 | |
| 4.0 | 11.0 | 19 | 27 | 35 | 45 | 60 | 82 | 105 | 165 | 300 | |
| 4.5 | 12.0 | 20 | 28 | 36 | 46 | 62 | 85 | 110 | 180 | ||
| 5.0 | 13.0 | 21 | 29 | 37 | 47 | 65 | 88 | 115 | 200 | ||
