0-100mm Dial Indicator

Long range dial indicator sketch
0-100mm Dial indicator

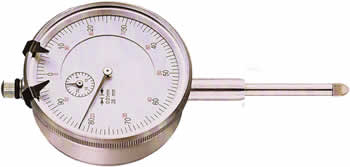

Type-A 0-100mm dial indicator
• Steel body.

• Jeweled bearing.

• With shockproof device.

• Lifting screw.

• Inside tolerance hand.

• White or black steel bezel is optional.

• Plastic flat back is valid for standard.The metal

  lug back can be supplied upon request.
0-100mm dial indicators
Range Grad. A B C D
0-30mm 0.01mm 37.5mm 89.5mm Ø58mm Ø53.5mm
0-50mm 0.01mm 108.3mm 126.2mm Ø58mm Ø53.5mm
0-80mm 0.01mm 138.4mm 168.4mm Ø58mm Ø53.5mm
0-100mm 0.01mm 167.6mm 207.8mm Ø78mm Ø69mm
0-30mm dial indicator, 0-50mm dial indicators, 0-80mm dial indicator, 0-100mm dial indicator.
0-25mm dial indicator Type-B 0-25mm dial indicator

• Steel or aluminum body.

• Lifting screw.

• With dial lock screw.

• Plastic flat back is valid for standard.The metal

  lug back can be supplied upon request.
0-25mm dial indicator
Range Grad. A B C D
0-25mm 0.01mm 37.5mm 80.5mm Ø58mm Ø53.5mm
0-30mm 0.01mm 37.5mm 88mm Ø58mm Ø53.5mm
Note:Broad knurl bezel or common is optional.
0-25mm dial indicator, 0-30mm dial indicator.
