Internal Threading Tool Holder

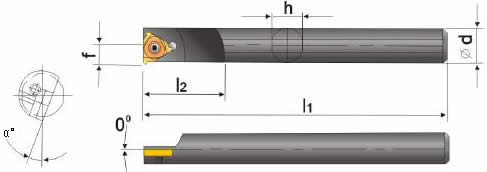

Internal threading tool holders sketch
| ORDERING NO. | Dia | Ød | f | l1 | l2 | h | α° | Anvil | Torch | INSERTS |
|---|---|---|---|---|---|---|---|---|---|---|
| SNR/L0010K11 | 12 | 10 | 7.4 | 125 | 25 | 9 | 15 | / | T8 | 11NR/L_ |
| SNR/L0016M16 | 19 | 16 | 11.7 | 150 | 40 | 15 | 15 | / | T10 | 16NR/L__ |
| SNR/L0020Q16 | 24 | 20 | 13.7 | 180 | 40 | 19 | 15 | (L)SE16 (R)SL16 |
||
| SNR/L0025R16 | 29 | 25 | 16.2 | 200 | 45 | 24 | 15 | |||
| SNR/L0032S16 | 36 | 32 | 19.7 | 250 | 50 | 30 | 15 | |||
| SNR/L0020Q22 | 24 | 20 | 15.6 | 180 | 45 | 19 | 15 | / | T20 | 22NR/L__ |
| SNR/L0025R22 | 29 | 25 | 18.1 | 200 | 47 | 24 | 15 | (L)SE22 (R)SL22 |
||
| SNR/L0032S22 | 38 | 32 | 21.6 | 250 | 55 | 30 | 15 | |||
| SNR/L0040T22 | 46 | 40 | 25.6 | 300 | 60 | 38 | 15 | |||
| SNR/L0032S27 | 40 | 32 | 22.6 | 250 | 60 | 30 | 15 | (L)SE27 (R)SL27 |
T25 | 27NR/L__ |
| SNR/L0040T27 | 48 | 40 | 26.6 | 300 | 65 | 38 | 15 | |||
| SNR/L0050U27 | 58 | 50 | 31.6 | 350 | 75 | 48 | 15 |
