Micrometer Heads

Micrometer Heads 0-25mm/1"

• Resolution: 0.01mm / 0.001".
• Accuracy: 0.003mm.
• Without spindle lock.

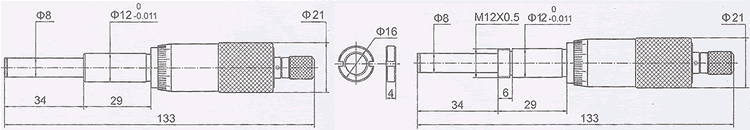

Type-A Micrometer heads
 Micrometer heads

Type-B Micrometer heads
Micrometer heads

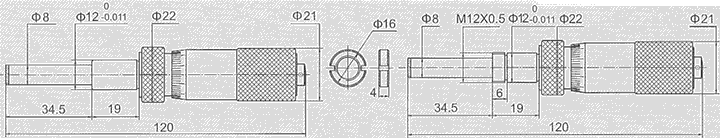

Micrometer Heads 0-25mm/1" Type-A Type-B
Type
Include: Ratchet stop & Friction thimble & Ratchet friction thimble
Type-C Micrometer heads

• Resolution: 0.01mm / 0.001" or 0.001mm / 0.0001".
 Micrometer heads

Type-D Micrometer heads

• Resolution: 0.01mm / 0.001" or 0.001mm / 0.0001".
    Micrometer heads

Micrometer Heads 0-25mm/1" Type-C Type-D
Type
Include: Ratchet stop & Without measuring force; Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001"
Type-E Micrometer heads
• Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001".
 Micrometer heads

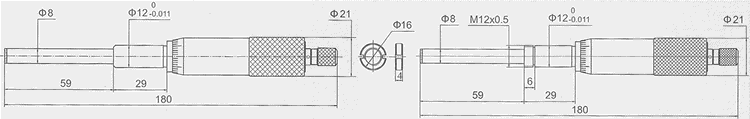

Micrometer Heads 0-25mm/1" Type-E
Ratchet stop Friction thimble Ratchet friction thimble

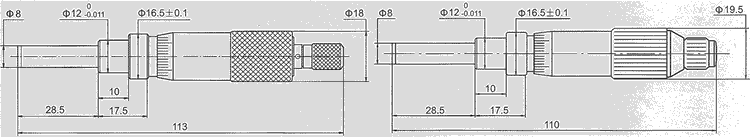

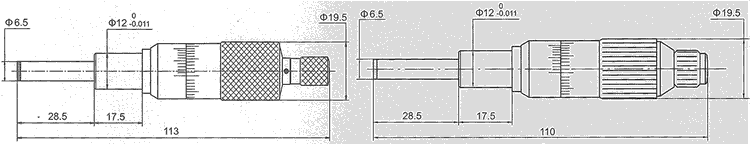

A=17.5  D=Ø6.5;   A=20.5 D=Ø8 A=17.5  D=Ø6.5;   A=20.5 D=Ø8 A=17.5  D=Ø6.5;   A=20.5 D=Ø8

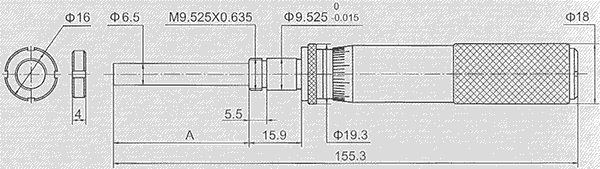

Resolution: 0.01mm / 0.001" & 0.002mm / 0.0001".   L=110mm,113mm,116mm.

Micrometer Heads 0-25mm/1" Non-rotating Spindle

Type-F Micrometer heads

• Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001".
• Accuracy: 0.003m
 Micrometer heads

Micrometer Heads 0-25mm/1"
Ratchet stopFriction thimble Ratchet friction thimble
Resolution: 0.01mm / 0.001" or 0.002mm / 0.0001"

Parallax Free Micrometer Heads 0-25mm/1"

Type-G Micrometer heads

• Resolution: 0.001mm / 0.0001".
• Accuracy: 0.003m
 Micrometer heads

Micrometer Heads 0-25mm/1"
Ratchet stopFriction thimble Ratchet friction thimble

Micrometer Heads 0-25mm/1" 100 Step Graduation

Type-H Micrometer heads

  • Resolution: 0.01mm/0.0005".
  • Micrometer thread pitch:1mm.
Type-J Micrometer heads
    Micrometer heads

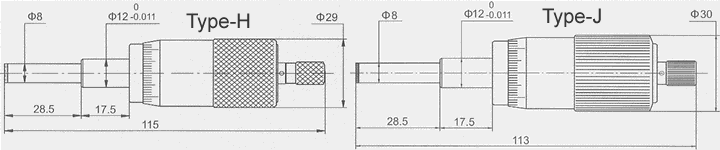

Graduation Micrometer Heads 0-25mm/1" 100 Step Type-H Type-J
RangeAccuracyType
0-25mm / 0-1" 0.004mm/0.00016"

Micrometer Heads 0-25mm/1" Zero Adjusting (Fine reading)

Type-K Micrometer heads

• Resolution: 0.001mm / 0.00005"; Accuracy: 0.003mm.
• Floating thimble (graduation) can be adjusted with the
  spindle clamped ,allowing zero setting at any spindle position.
        Micrometer heads

Micrometer Heads 0-25mm/1" with Locking Device

Type-L Micrometer heads

• Resolution: 0.01mm / 0.001".
        Micrometer heads

Micrometer Heads 0-25mm/1" With Locking
RangeAccuracyType
0-25mm / 0-1" 0.004mm/0.00016"
Include:Without measuring force & Ratchet stop

Micrometer Heads XY Plane (Fine reading)

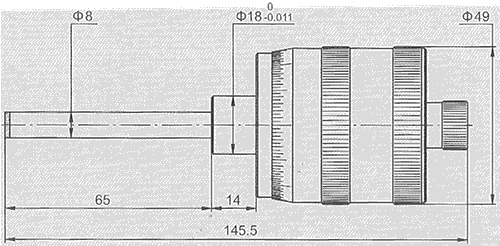

Type-M Micrometer heads

• Resolution: 0.002mm / 0.0001".
• The large diameter thimble (Ø49mm) provides
  high resolution measurement.
• Bidirectional graduation has different fonts for
  reading in both directions.
Micrometer heads

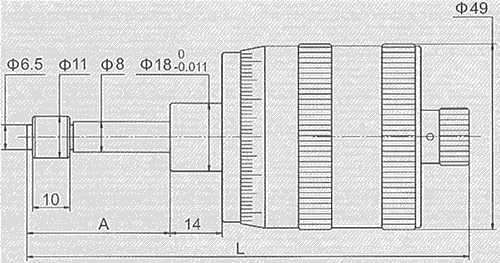

Micrometer Heads 0-25mm/1" XY Plane (Fine reading)
RangeAccuracyType
0-25mm/0-1" 0.003mm + + + + A=38.5 L=119
0-50mm/0-2" 0.005mm + + + + A=65 L=163

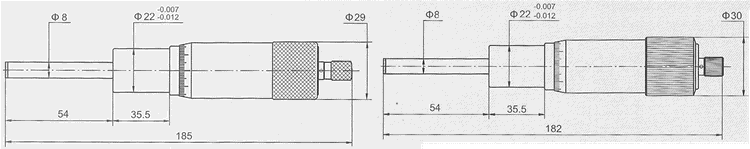

Micrometer Heads 0-50mm/2"

Type-N Micrometer heads
• Resolution: 0.005mm / 0.0002".
• Accuracy: 0.005mm.
• Micrometer thread pitch: 1mm.Non-rotating spindle.
• Flat & Carbide measuring face.
Micrometer heads

Type-P Micrometer heads

• Resolution: 0.01mm /0.001" or 0.001mm /0.0001".
 Micrometer heads

Type-Q Micrometer heads

• Resolution: 0.01mm / 0.001".
• Accuracy: 0.005mm.
 Micrometer heads

Micrometer Heads 0-50mm/2" Type-P
Ratchet stop
Without measuring force
Micrometer Heads 0-50mm/2" Type-Q
Ratchet stop
Friction thimble
Ratchet friction thimble

Micrometer Heads 0-50mm/0-2" 100 Step Graduation

Type-R Micrometer heads

• Resolution: 0.01mm / 0.0005".
• Accuracy: 0.003mm.
• Micrometer thread pitch: 1mm.
 Micrometer heads

Micrometer Heads 0-50mm/2"
Ratchet stop
Ratchet friction thimble

Micrometer Heads 0-50mm/2" with Locking Device

Type-S Micrometer heads

• Resolution: 0.01mm / 0.001".
• Accuracy: 0.005mm.
        Micrometer heads

Micrometer Heads 0-50mm/2" With Locking
Ratchet stop
Without measuring force
Reference Hyperlink

If you want to view the 0-25/1" Differential Micrometer Head (Fine Reading),please refer to
Micrometer head
