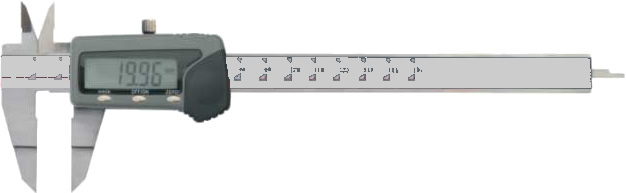

Digital Blade Caliper
Minimum narrow slots: 0.75mm/0.03" for range 0-150mm/6" or 0-200mm/8".
Minimum narrow slots: 1mm/0.04" for range 0-300mm/12".
• Thinner jaw tips for effective measurement
of narrow slots.
• Metric/Inch system conversion at any position.
• Zero setting at any position.
• With data output interface.

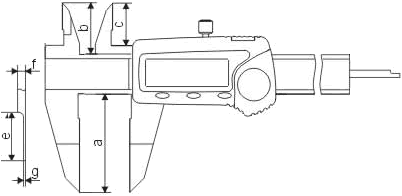

| Range | Resolution | Accuracy | a | b | c | e | f | g |
|---|---|---|---|---|---|---|---|---|
| 0-150mm | 0.01mm/0.0005" | ±0.03mm | 40mm | 21mm | 16.5mm | 20mm | 3.2mm | 0.75mm |
| 0-150mm | 0.01mm/0.0005" | ±0.03mm | 40mm | 21mm | 16.5mm | 18mm | 3.2mm | 0.75mm |
| 0-200mm | 0.01mm/0.0005" | ±0.03mm | 50mm | 24mm | 19.5mm | 20mm | 3.6mm | 0.75mm |
| 0-200mm | 0.01mm/0.0005" | ±0.03mm | 50mm | 24mm | 19.5mm | 18mm | 3.6mm | 0.75mm |
| 0-300mm | 0.01mm/0.0005" | ±0.04mm | 60mm | 25mm | 20.5mm | 20mm | 3.8mm | 1mm |
| 0-300mm | 0.01mm/0.0005" | ±0.04mm | 60mm | 25mm | 20.5mm | 18mm | 3.8mm | 1mm |
