Coolant Proof Caliper

IP65 Coolant proof calipers
Coolant proof calipers Type-A
RangeResolution
0-150mm / 6" 0.01mm/0.0005"
IP65 Coolant proof calipers  Type-A • The technology of capacitive sensor or electromagnetic sensor adopted.

• It can work in the water.The degree of protection is IP65

• With on/off button and data output interface.
6" coolant proof caliper

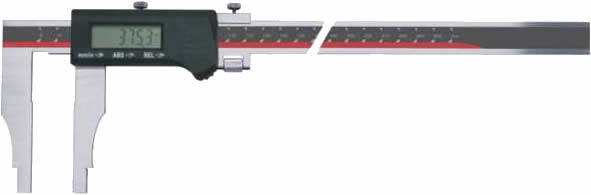

IP66 Coolant proof caliper IP66 Coolant proof caliper  Type-B

IP66 Coolant proof calipers sketch • The degree of protection is IP66.
• Can be exposed to cooling fluid, water, dust or oil.
• With power on/off.Leave it aside still for 20 minutes and it'll be
  power off automatically.
• Provided with a fine-adjustment carriage.
• Round measuring faces for accurate inside measurement.
• Metric/Inch system conversion and zero setting at any position.
• Absolute measurement and comparison measurement
  conversion at any position.

Coolant proof calipers Type-B
RangeResolutionabcdAccuracy
0-500mm 0.01mm/0.0005" 100mm 10mm 18mm 24mm ±0.05mm
0-500mm 0.01mm/0.0005" 150mm 10mm 18mm24mm ±0.05mm
0-600mm 0.01mm/0.0005" 100mm 10mm 18mm24mm ±0.05mm
0-600mm 0.01mm/0.0005" 150mm 10mm 18mm24mm ±0.05mm
0-800mm 0.01mm/0.0005" 150mm 10mm 24mm 31mm ±0.06mm
0-800mm 0.01mm/0.0005" 200mm 10mm 24mm31mm ±0.06mm
0-1000mm 0.01mm/0.0005" 150mm 10mm 24mm31mm ±0.07mm
0-1000mm 0.01mm/0.0005" 200mm 10mm 24mm31mm ±0.07mm
20" coolant proof caliper, 24" coolant proof calipers, 32" coolant proof caliper, 40" coolant proof calipers.

IP54 Coolant proof calipers • It can work after cleaning the splashed water on it.
• The degree of protection is IP54.
• With power on/off button and data output interface.
• Metric/Inch system conversion at any position.
IP54 Coolant proof calipers Type-C
Coolant proof calipers Type-C
RangeResolutionAccuracyRangeResolutionAccuracy
0-150mm 0.01mm/0.0005" ±0.03mm 0-200mm0.01mm/0.0005" ±0.03mm
6" coolant proof caliper, 8" coolant proof caliper.

  Reference hyperlink:   IP67 caliper
