Offset Caliper

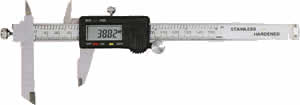

Digital Offset Caliper

Offset caliper Type-A Offset caliper
• The main scale jaw can be slid up and down to

  facilitate measurement of stepped sections.

• Manual power on/off.

• Zero setting at any position.

• Metric/Inch system conversion at any position.

• With data output interface.

Offset caliper Type-A
Range mm/in  Resolution mm/in  H1 mm   H2 mm  H mm C mm  Accuracy mm
0-150 / 6" 0.01/0.0005" 40 77 73 16 ±0.03
0-200 / 8" 0.01/0.0005" 50 90.5 79.5 16 ±0.04
0-300 / 12" 0.01/0.0005" 60 102 88 17 ±0.05
0-500 / 20" 0.01/0.0005" 100 169 141 25 ±0.07
6" offset calipers, 8" offset calipers, 12" offset calipers, 20" offset calipers.

Dial Offset Calipers

Offset calipers Offset calipers Type-B
• Main scale jaw can be slid up and down to facilitate measurement of stepped sections.

• Easy to read clearly.

• With an adjustable dial face which can be fastened by a clamping screw.
Offset calipers Type-B
RangeGraduationRange/rev
0-150mm 0.02mm 2mm
0-200mm 0.02mm 2mm
0-300mm 0.02mm 2mm
6" offset caliper, 8" offset caliper, 12" offset caliper.
