Tube Thickness Caliper
Tube thickness caliper
6" digital thickness caliper,8" digital thickness caliper,12" digital thickness caliper.
| Range | Resolution | A | B | C | Accuracy |
|---|---|---|---|---|---|
| mm/in | mm/in | mm | mm | mm | mm |
| 0-150 / 6" | 0.01/0.0005" | 60 | 30 | 16 | ±0.03 |
| 0-200 / 8" | 0.01/0.0005" | 60 | 30 | 16 | ±0.03 |
| 0-300 / 12" | 0.01/0.0005" | 60 | 30 | 16 | ±0.04 |
• To measure the tube thickness if the tube's diameter is 4mm or more.• Manual power on/off.
• Zero setting at any position.
• Metric/Inch system conversion at any position.

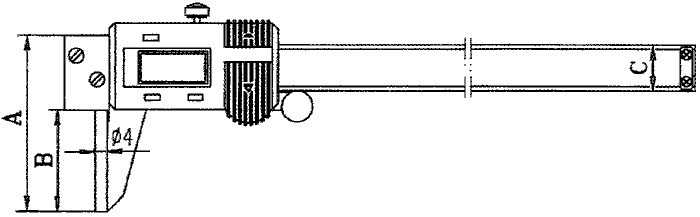

• With data output interface. Tube thickness caliper sketch
