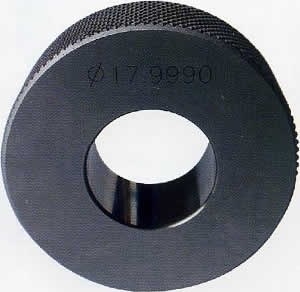

Plain Ring Gauge

Go no go ring gauge

Plain ring gage

Plain ring gauges
Nominal Ø
1.8	8	18	28	38	52	80	110
2.0	9	19	29	39	55	82	115
2.5	10	20	30	40	58	85	120
3.0	11	21	31	42	60	88	125
3.5	12	22	32	44	62	90	130
4.0	13	23	33	45	65	92	135
4.5	14	24	34	46	68	95	150
5.0	15	25	35	47	70	98	165
6.0	16	26	36	48	72	100	180
7.0	17	27	37	50	75	105	200

Ø1.8 plain ring gauge, Ø2.0 plain ring gage . . . ,Ø180 plain ring gauges,
Ø200 plain ring gage.

Plain ring gauges confirm: DIN 7162

Plain ring gauge tolerance grade: IT6-IT12

Reference hyperlink: Setting ring gauge, Limit plug gauge.
