Dial Test Indicator

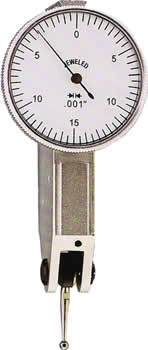

Dial test indicator
Dial test indicators sketch
• Dial test indicators is used
for measuring inch size.
for measuring inch size.
| Range | Grad. | A | d1 | d2 | L | L1 |
|---|---|---|---|---|---|---|
| 0.03" | 0.001" | 1.18" | 3/8" | 5/32" | 0.62" | 0.35" |
| 0.03" | 0.001" | 1.48" | 3/8" | 5/32" | 0.62" | 0.35" |
| 0.03" | 0.0005" | 1.18" | 3/8" | 5/32" | 0.62" | 0.35" |
| 0.03" | 0.0005" | 1.48" | 3/8" | 5/32" | 0.62" | 0.35" |
| 0.03" | 0.0005" | 1.18" | 3/8" | 5/32" | 1.74". | 1.47" |
| 0.03" | 0.0005" | 1.48" | 3/8" | 5/32" | 1.74" | 1.47" |
| 0.03" | 0.0001" | 1.18" | 3/8" | 5/32" | 0.64" | 0.37" |
| 0.03" | 0.0001" | 1.48" | 3/8" | 5/32" | 0.64" | 0.37" |
