Precision Dial Indicator
Click here to view the
precision dial indicator sketch
• Steel body.
• Jeweled bearing.
• Anti-dirty cap.
• With dial lock screw.
• Plastic flat back is valid for standard.
The metal lug back can be supplied upon request.

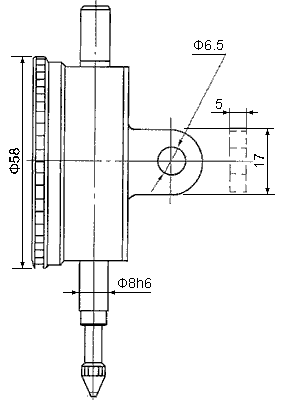

precision dial indicator sketch
Precision dial indicator
• Steel body.
• Jeweled bearing.
• Anti-dirty cap.
• With dial lock screw.
• Plastic flat back is valid for standard.
The metal lug back can be supplied upon request.
| Range | Grad. | Dial diameter | Explanation |
|---|---|---|---|
| 0-1mm | 0.001mm | 58 | Outside tolerance hand |
| 0-1mm | 0.001mm | 56 | Broad knurl metal bezel with inside tolerance hand |
| 0-1mm | 0.001mm | 58 | Inside tolerance hand |
| 0-2mm | 0.001mm | 58 | Outside tolerance hand |
| 0-2mm | 0.001mm | 56 | Broad knurl metal bezel with inside tolerance hand |
| 0-2mm | 0.001mm | 58 | Inside tolerance hand |
0-1mm precision dial indicators, 0-2mm precision dial indicator.
