Threading Tool Holder
External Threading Tool Holder

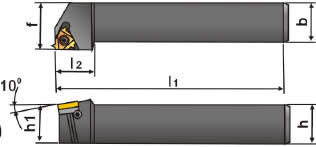

External threading tool holders sketch
| ORDERING NO. | H | B | L1 | L2 | H1 | F | ANVIL | TORCH | INSERTS |
|---|---|---|---|---|---|---|---|---|---|
| SER/L 1010 H11 | 10 | 10 | 100 | 18 | 10 | 12 | X | T8 | 11ER/L___ |
| SER/L 1212 H16 | 12 | 12 | 100 | 22 | 12 | 16 | T15 | ||
| SER/L 1616 H16 | 16 | 16 | 100 | 22 | 16 | 20 | (R)SE16 (L)SL16 | T15 | 16ER/L ___ |
| SER/L 2020 K16 | 20 | 20 | 125 | 22 | 20 | 35 | |||
| SER/L 2525 M16 | 25 | 25 | 150 | 22 | 25 | 32 | |||
| SER/L 3232 P16 | 32 | 32 | 170 | 22 | 32 | 40 | |||
| SER/L 2525 M22 | 25 | 25 | 150 | 28 | 25 | 22 | (R)SE22 (L)SL22 |
T15 | 22ER/L___ |
| SER/L 3232 P22 | 32 | 32 | 170 | 32 | 32 | 40 | |||
| SER/L 2525 M27 | 25 | 25 | 150 | 34 | 25 | 32 | (R)SE27 (L)SL27 |
T20 | 27ER/L___ |
| SER/L 3232 P27 | 32 | 32 | 170 | 34 | 32 | 40 |
