Digital Micrometer Head

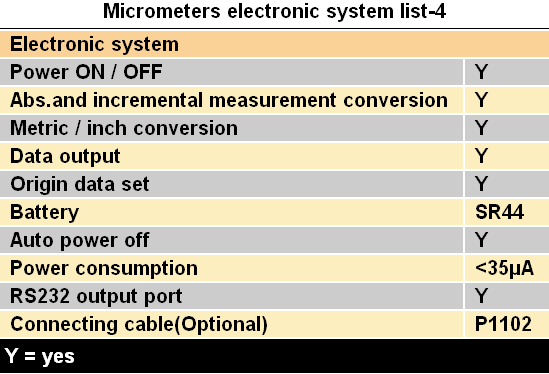

Digital micrometer heads Type-A Electronic system

• Protection level: IP54.

• Resolution of digit: 0.001mm / 0.00005";

(for Type-A) Resolution of micrometer heads:0.01mm / 0.0001".

Digital micrometer heads Electronic system Type-B

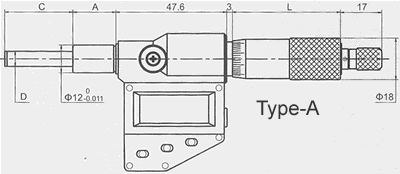

Digital micrometer head Type-A
Range	Accuracy	Type						D	A	C	L
0-25mm / 0-1"	0.003mm							Ø6.5	17.5	28.5	47
0-50mm / 0-2"	0.005mm							Ø8.0	35.5	53	71.5

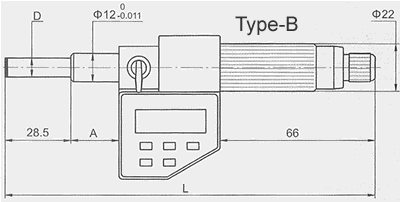

Digital micrometer head Type-B
Range	Accuracy	Type		A	D	L
0-25mm / 0-1"	0.003mm			17.5	Ø6.5	153.5
0-25mm / 0-1"	0.003mm			20.5	Ø8.0	156.5

Digital micrometer heads Electronic system Type-C

The four state of measurements

• Protection level: IP54.

• Resolution: 0.001mm / 0.00005".;

• Double display , LCD direction can be changed by key.

• Direction of display changing key. Pressing this key will turn on back

LCD,reverse display and normal display (turn off back LCD).

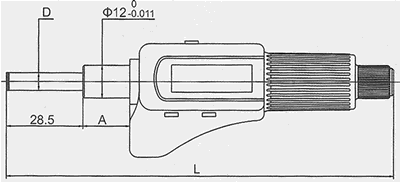

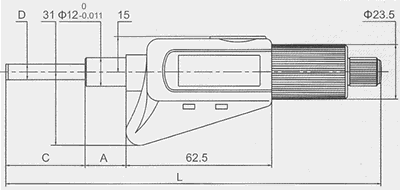

Digital micrometer head Type-C
Range	Accuracy	A	D	C	L
0-30mm / 0-1.2"	0.003mm	17.5	Ø6.5	34	159
0-30mm / 0-1.2"	0.003mm	20.5	Ø8.0	34	162
0-50mm / 0-2"	0.005mm	35.5	Ø6.5	53	196

Digital micrometer heads Electronic system Type-D

• Protection level: IP54.

• Resolution: 0.001mm / 0.00005".

Digital micrometer head Type-D
Range	Accuracy	Type		A	D	L
0-25mm / 0-1"	0.003mm			17.5	Ø6.5	144
0-25mm / 0-1"	0.003mm			20.5	Ø8.0	147

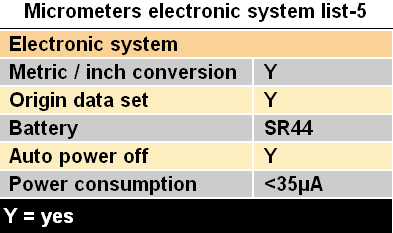

Digital micrometer heads Electronic system Type-E

• Protection level: IP54.

• Resolution of digit: 0.001mm / 0.00005";

Resolution of micrometer heads: 0.01mm / 0.0001".

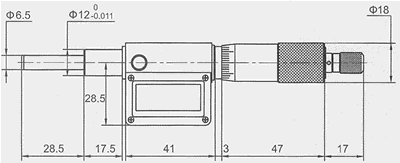

Digital micrometer head Type-E
Range	Accuracy	Type
0-25mm / 0-1"	0.003mm

Reference hyperlink: Micrometer head, Micrometer heads, Special micrometer heads.
