Digital Micrometer

Digital Micrometer (Three Key)

Digital micrometer

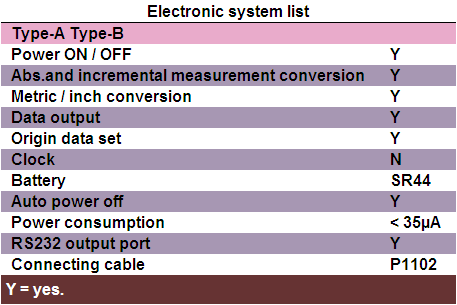

Type-A Digital micrometer
• Protection level: IP54(Type-A) and IP65(Type-B).
• Display data is origin data of absolute measurement after turning on/off.
• Criterion: DIN863/1, DIN40050/IEC529 standard.
• Carbide measuring faces;Painted frame.
• Resolution of digit: 0.001mm / 0.00005".
  Resolution of micrometer heads: 0.01mm / 0.0001".
Digital micrometer Digital micrometer
Type-B

Digital micrometers Type-A
Range Accuracy Range Accuracy
0-25mm / 0-1" ±0.002mm 150-175mm / 6-7" ±0.004mm
25-50mm / 1-2" ±0.002mm 175-200mm / 7-8" ±0.004mm
50-75mm / 2-3" ±0.003mm 200-225mm / 8-9" ±0.004mm
75-100mm / 3-4" ±0.003mm 225-250mm / 9-10" ±0.004mm
100-125mm / 4-5" ±0.003mm 250-275mm / 10-11" ±0.005mm
125-150mm / 5-6" ±0.003mm 275-300mm / 11-12" ±0.005mm
1" digital micrometer, 2" digital micrometer, 3" digital micrometer, 4" digital micrometer,
5" digital micrometer, 6" digital micrometer, 7" digital micrometer, 8" digital micrometer,
9" digital micrometer, 10" digital micrometer, 11" digital micrometer, 12" digital micrometer.
Digital micrometers Type-B
Range Accuracy Range Accuracy
0-25mm / 0-1" ±0.001mm 150-175mm / 6-7" ±0.003mm
25-50mm / 1-2" ±0.001mm 175-200mm / 7-8" ±0.003mm
50-75mm / 2-3" ±0.001mm 200-225mm / 8-9" ±0.004mm
75-100mm / 3-4" ±0.002mm 225-250mm / 9-10" ±0.004mm
100-125mm / 4-5" ±0.002mm 250-275mm / 10-11" ±0.005mm
125-150mm / 5-6" ±0.002mm 275-300mm / 11-12" ±0.005mm
1" digital micrometers, 2" digital micrometer, 3" micrometer screw gauge, 4" electronic digital micrometer,
5" digital outside micrometer, 6" digimatic micrometer, 7" electronic digital micrometer,
8" digital outside micrometer, 9" digimatic micrometer, 10" electronic digital micrometer,
11" digital outside micrometer, 12" digimatic micrometer.

Double Display Digital Micrometers (Two Key)

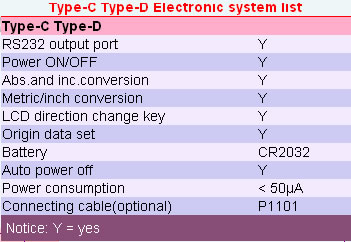

Type-C Digital micrometers Digital micrometers
• Double display in front and back. LCD direction can be changed by key for
  easy reading in all kinds of measuring condition and left or right
• Protection level: IP54.
• Display data is origin data of absolute measurement after turning on/off.
• Criterion: DIN863/1, DIN40050/IEC529 standard.
• Carbide measuring faces.
• Travel of micrometer head: 30mm.
• Resolution of digit: 0.001mm / 0.00005".
Type-D Digital micrometers Digital micrometers

Double display digital micrometers Type-C Type-D
RangeAccuracyRangeAccuracy
0-30mm / 0-1.2"0.004mm 100-130mm / 4-5.2"0.006mm
25-55mm / 1-2.2"0.004mm 125-155mm / 5-6.2"0.006mm
50-80mm / 2-3.2“ 0.005mm 150-180mm / 6-7.2"0.007mm
75-105mm / 3-4.2"0.005mm 175-205mm / 7-8.2"0.007mm
1.2" digital micrometers, 2.2" digital micrometers, 3.2" digital micrometers, 4.2" digital micrometers,
5.2" digital micrometer, 6.2" digital micrometer, 7.2" digital micrometer, 8.2" digital micrometer.

Electronic Micrometer (Travel of Head:50mm)

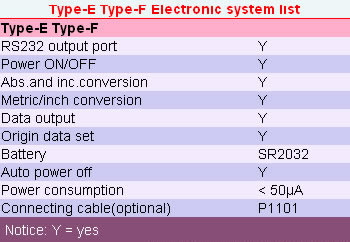

Type-E Electronic micrometer Electronic micrometer
• Protection level: IP54.
• Carbide measuring faces;fine cast frame(Type-F).
• Resolution of digit: 0.001mm/0.00005".
• Double display LCD direction can be changed by key for
  easy reading in all kinds of measuring condition and left or right
• Type-E travel of micrometer head: 50mm. Non-Rotating spindle.
  Type-F travel of micrometer head: 30mm.
• Criterion: DIN863/1, DIN40050/IEC529 standard(Type-E).

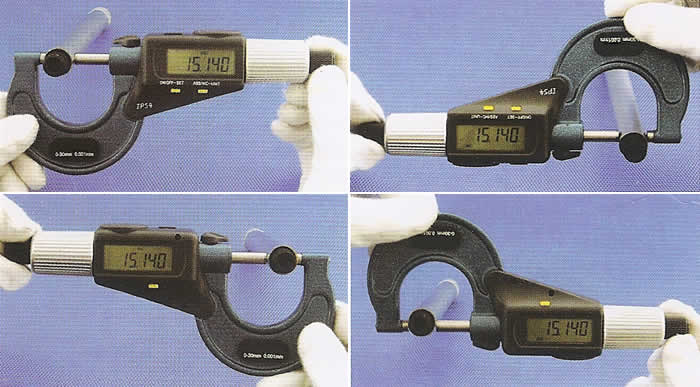

Electronic micrometer Type-F Electronic micrometer The state of measurements

Digital outside micrometer Type-E
RangeAccuracyRangeAccuracy
0-50mm / 0-2" ±0.003mm 100-150mm / 4-6" ±0.004mm
50-100mm / 2-4" ±0.003mm 150-200mm / 6-8" ±0.004mm
2" digital outside micrometer, 4" digital outside micrometer, 6" digital outside micrometer, 8" digital outside micrometer,
Electronic micrometer Type-F
RangeAccuracyRangeAccuracy
0-30mm / 0-1.2"0.004mm 145-175mm / 5.8-7"0.007mm
20-50mm / 0.8-2"0.004mm 170-200mm / 6.8-8"0.007mm
45-75mm / 1.8-3"0.005mm 195-225mm / 7.8-9"0.008mm
70-100mm / 2.8-4"0.005mm 220-250mm / 8.8-10"0.008mm
95-125mm / 3.8-5"0.006mm 245-275mm / 9.8-11"0.009mm
120-150mm / 4.8-6"0.006mm 270-300mm / 10.8-12"0.009mm
1.2" electronic micrometers, 2" electronic micrometer, 3" electronic micrometer, 4" electronic micrometer,
5" electronic micrometer, 6" electronic micrometer, 7" electronic micrometer,
8" electronic micrometer, 9" electronic micrometer, 10" electronic micrometer,
11" electronic micrometer, 12" electronic micrometer.


Electronic Digital Micrometer (Five Key)

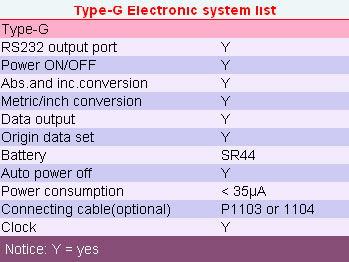

Type-G Electronic digital micrometer Electronic digital micrometer
• Protection level: IP54.
• Display data is origin data of absolute measurement after turning on/off.
• Carbide measuring faces. Chrome-plated frame or fine cast frame.
• Carbide measuring faces.
• Criterion: DIN863/1, DIN40050/IEC529 standard.
• Resolution: 0.001mm / 0.00005".

Electronic digital micrometer Type-G
RangeAccuracyRangeAccuracy
0-25mm / 0-1"±0.002mm 100-125mm / 4-5"±0.003mm
25-50mm / 1-2"±0.002mm 125-150mm / 5-6"±0.003mm
50-75mm / 2-3" ±0.003mm 150-175mm / 6-7" ±0.004mm
75-100mm / 3-4"±0.003mm 175-200mm / 7-8"±0.004mm
1" electronic digital micrometer, 2" electronic digital micrometer, 3" electronic digital micrometer, 4" electronic digital micrometer,
5" electronic digital micrometer, 6" electronic digital micrometer, 7" electronic digital micrometer,
8" electronic digital micrometer.

Micrometer Screw Gauge (Single Key)

Micrometer screw gauge Micrometer screw gauge

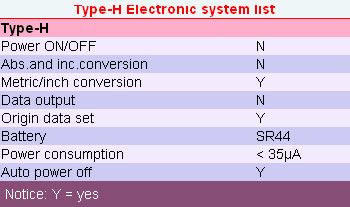

Type-H
Micrometer screw gauge
• Protection level: IP54.
• Display data is origin data of absolute measurement after turning on/off.
• Chrome-plated frame or fine cast frame.
• Carbide measuring faces.
• Criterion: DIN863/1, DIN40050/IEC529 standard.
• Resolution: 0.001mm / 0.00005".

Micrometer screw gauge Type-H
Range Accuracy Range Accuracy
0-25mm / 0-1" ±0.002mm 150-175mm / 6-7" ±0.004mm
25-50mm / 1-2" ±0.002mm 175-200mm / 7-8" ±0.004mm
50-75mm / 2-3" ±0.003mm 200-225mm / 8-9" ±0.004mm
75-100mm / -4" ±0.003mm 225-250mm / 9-10" ±0.004mm
100-125mm / 4-5" ±0.003mm 250-275mm / 10-11" ±0.005mm
125-150mm / 5-6" ±0.003mm 275-300mm / 11-12" ±0.005mm
1" micrometer screw gauge, 2" micrometer screw gauge, 3" micrometer screw gauge, 4" micrometer screw gauge,
5" micrometer screw gauge, 6" micrometer screw gauge, 7" micrometer screw gauge,
8" micrometer screw gauge, 9" micrometer screw gauge, 10" micrometer screw gauge,
11" micrometer screw gauge,12" micrometer screw gauge.

Digimatic Micrometer (Single and Double Key)

Type-J Electronic system Digimatic micrometer Digimatic micrometer
• Easy operation.
• Display data is origin data of absolute measurement after turning on/off.
• Carbide measuring faces.Painted frame.
• Criterion: DIN863/1, DIN40050/IEC529 standard.
• Resolution: 0.001mm / 0.00005".
Digimatic micrometer Type-K Electronic system Digimatic micrometer

Digimatic micrometer Type-J Type-K
RangeAccuracyRangeAccuracy
0-25mm / 0-1"±0.002mm 100-125mm / 4-5" ±0.003mm
25-50mm / 1-2"±0.002mm 125-150mm / 5-6"±0.003mm
50-75mm / 2-3"±0.003mm 150-175mm / 6-7"±0.004mm
75-100mm / 3-4"±0.003mm 175-200mm / 7-8"±0.004mm
1" digimatic micrometer, 2" digimatic micrometer, 3" digimatic micrometer, 4" digimatic micrometer,
5" digimatic micrometer, 6" digimatic micrometer, 7" digimatic micrometer, 8" digimatic micrometer.

Micrometer Screw Gage (Interchangeable Anvils)

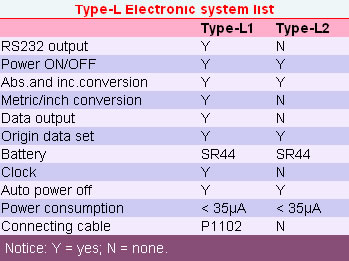

Type-L Micrometer screw gage Ratchet stop Micrometer screw gage
• Wide measuring range with interchangeable anvils.High accuracy interchangeable
  anvils enable that reading does not have to reset when changing anvils.
• Carbide measuring faces.
• Painted and fine cast frame
• Pipe combined frame for light weight and high rigidity(over 300mm/12").

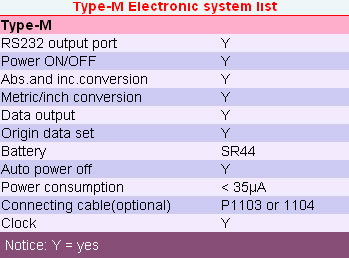

Micrometer screw gage Type-M Micrometer screw gage Ratchet friction thimble

Micrometer screw gage Type-L Type-M
Range Accuracy Range Accuracy
0-50mm / 0-2" ±0.002mm 800-900mm / 32-36" ±0.010mm
50-100mm / 2-4" ±0.003mm 900-1000mm / 36-40" ±0.010mm
0-100mm / 0-4" ±0.003mm 0-150mm / 0-6" ±0.003mm
100-200mm / 4-8" ±0.003mm 150-300mm / 6-12" ±0.005mm
200-300mm / 8-12" ±0.005mm 300-450mm / 12-18" ±0.006mm
300-400mm / 12-16" ±0.006mm 450-600mm / 18-24" ±0.007mm
400-500mm / 16-20" ±0.007mm 600-750mm / 24-30" ±0.009mm
500-600mm / 20-24" ±0.007mm 750-900mm / 30-36" ±0.010mm
600-700mm / 24-28" ±0.008mm 900-1050mm / 36-42" ±0.010mm
700-800mm / 28-32" ±0.009mm
