Measurement Table

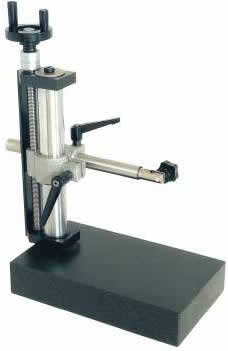

Measurement Table (with Granite Base)
Measurements table
| Measuring range | 0-160mm |
|---|---|
| Overhang | 200mm |
| Measuring area | 150X250mm |
| Column diameter | Ø35mm |
| column diameter of the cross arm | Ø20mm |
| Adapter hole for dial gauge | Ø8mm(3/8)" |
Measurements table sketch
• The base of measuring table made up of
natural granite.The measuring surface is
corrosion-free,anti-magnetic and harder than steel.
• The flatness of the measuring surface is
according to DIN876/00.
• Measuring table with a precision-threaded
spindle and graduation (resolution:0.01mm) for
easy lift or drop of column of the cross arm.
natural granite.The measuring surface is
corrosion-free,anti-magnetic and harder than steel.
• The flatness of the measuring surface is
according to DIN876/00.
• Measuring table with a precision-threaded
spindle and graduation (resolution:0.01mm) for
easy lift or drop of column of the cross arm.
Measurement Tables (with Fine Cast Base)
Adjustable-AMeasurement tables
Adjustable-BMeasurement tables
Measurement tables sketch
• The flatness of the measuring
face is conforming with DIN 876/00.
• Column diameter: Ø35mm.
• Quadrate and round measuring
blocks are optional.
Round measuring blocks
face is conforming with DIN 876/00.
• Column diameter: Ø35mm.
• Quadrate and round measuring
blocks are optional.
Round measuring blocks
