Micrometer head

Differential Micrometer Head 0-2.5mm/0-0.1" (Fine Adjusting)

Type-A
Micrometer head
• Non-rotating spindle
• It moves 0.05mm as the thimble turns a circle,
  available to measure with high-resolution.
• Carbide measuring face.
Micrometer head

Differential micrometer head 0-2.5mm/0.1"
Accuracy Accuracy
Resolution Full length    within 0.05mm    Resolution Full length     within 0.05mm
0.001mm / 0.00005" 0.005mm 0.0015mm 0.0001mm/0.000005" 0.005mm 0.0015mm
0.001mm / 0.00005" 0.007mm 0.0030mm 0.0001mm/0.000005" 0.007mm 0.0030mm

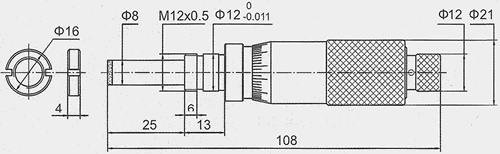

Differential Micrometer Head 0-25mm/0-1" (Fine Reading)

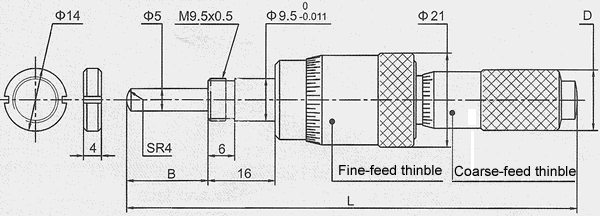

Type-B
Micrometer head
• Double-thimble mechanism allows coarse and fine feeding to be
 performed independently.
• Feed accuracy is high.Fine-feed value: 0.2mm.
• Resolution of Fine-feed thimble: 0.0005mm / 0.00002".
• Resolution of Coarse-feed thimble: 0.02mm / 0.001".
Micrometer head

Differential Micrometer head (Fine Reading) 0-25mm/1"
Accuracy
RangeCoarseFine Type
0-13mm / 0-0.5" 0.003mm 0.0015mm
0-13mm / 0-0.5" 0.003mm 0.0030mm
0-25mm / 0-1" 0.003mm 0.0015mm
0-25mm / 0-1"0.003mm 0.0030mm

Micrometer Head 0-5mm/0-0.2"

Type-C
Micrometer head

• Resolution: 0.02mm / 0.001".

Micrometer head
Micrometer head 0-5mm/0.2"
Range Accuracy Type
0-5mm / 0-0.2" 0.005mm

0-6.5mm/0-0.25" Micrometer Head

• Resolution: 0.01mm / 0.001".

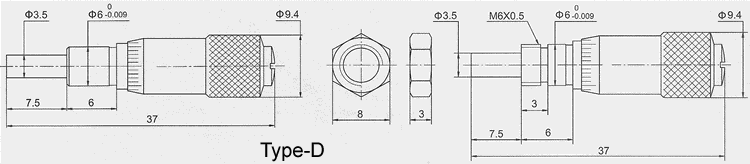

Type-D Micrometer head
• Resolution: 0.01mm / 0.001".

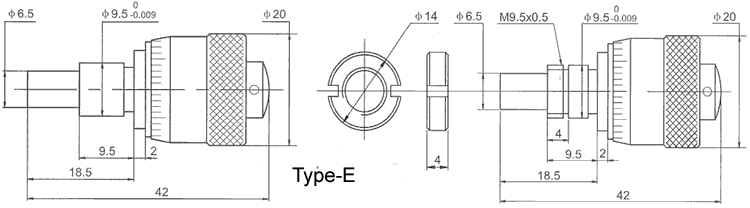

Type-E
• Resolution: 0.005mm / 0.0002".
• Micrometer thread pitch: 0.25mm.

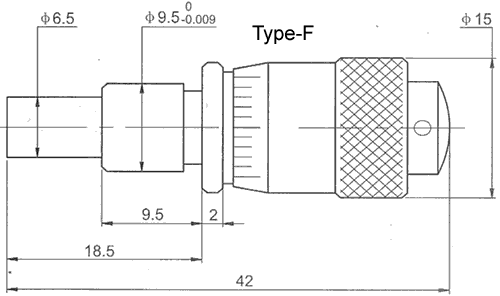

   Type-F
 Micrometer head

 Micrometer head

Micrometer head

Micrometer head 0-6.5mm/0.25"Type-D Type-E
Range Accuracy Type
0-6.5mm / 0-0.25" 0.005mm
Micrometer head 0-6.5mm/0.25" Type-F
Range Accuracy Type
0-6.5mm / 0-0.25" 0.005mm

Micrometer Head 0-13mm/0-0.5"

• Resolution: 0.01mm / 0.001". Accuracy: 0.004mm.

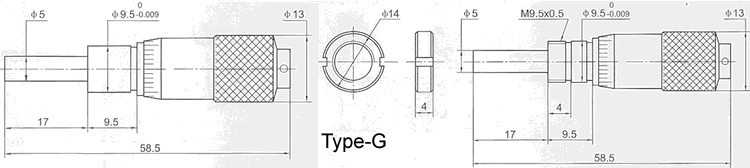

Type-G
Micrometer head

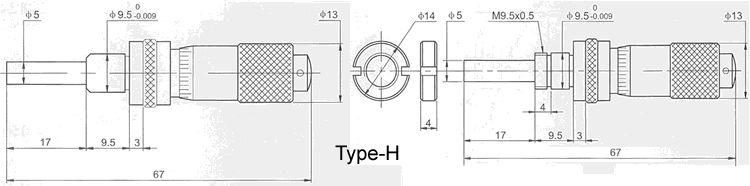

Type-H
 Micrometer head

 Micrometer head

Micrometer head 0-13mm/0.5" Type-G Type-H
Type + + + +
Type + + + +

Micrometer Head with Variable Zero-Setting 0-13mm/0-0.5"

• Resolution: 0.01mm / 0.001". Accuracy: 0.004mm.

Type-J
Micrometer head
Type-K
Micrometer head
 Micrometer head

 Micrometer head

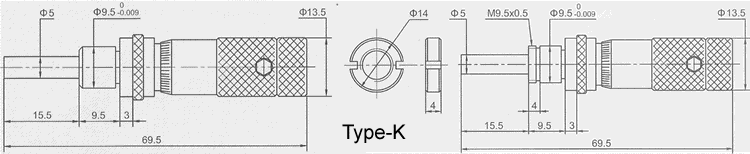

Micrometer head 0-13mm/0.5" Type-J Type-K
Type + + + +
Type + + + +

Fine Reading Micrometer Head 0-13mm/0-0.5"

Type-L
Micrometer head

• Resolution: 0.005mm / 0.0002".
• Micrometer thread pitch: 0.25mm.
 Micrometer head

Micrometer head 0-13mm/0.5"
  Range Accuracy Type
0-13mm / 0-0.5" 0.004mm

Large Diameter Thimble Micrometer Head 0-13mm/0-0.5"

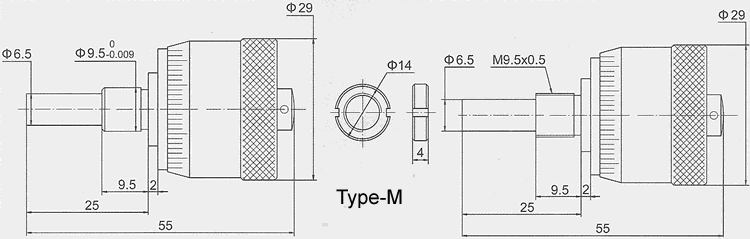

Type-M


• Resolution: 0.01mm / 0.001".
 Micrometer head

Large diameter thimble micrometer head 0-13mm/0.5"
RangeAccuracyType
0-13mm / 0-0.5" 0.004mm

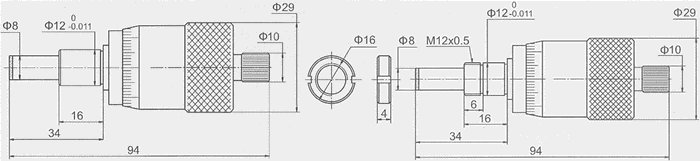

Micrometer Head 0-15mm/0-0.6"

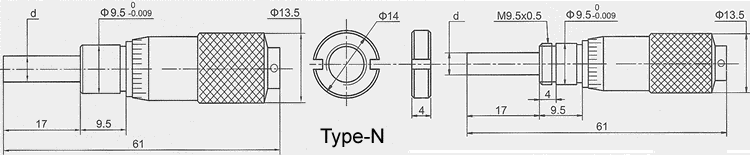

Type-N
Micrometer head
Type-P
Micrometer head

• Resolution: 0.01mm / 0.001".
• Accuracy: 0.004mm.
 Micrometer head

 Micrometer head

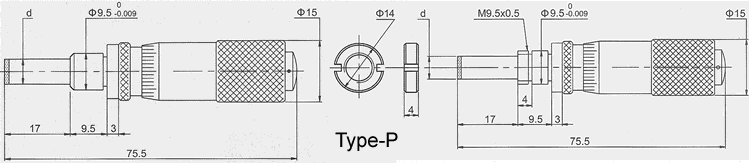

Micrometer 0-15mm/0.6" head Type-N
Type + + + +
Micrometer 0-15mm/0.6" head Type-P
Type + + + +

Micrometer Head (100 Step Graduation) 0-15mm/0-0.6"

Type-Q
Micrometer head

• Resolution: 0.01mm / 0.001".
• Micrometer thread pitch: 1mm.
      Micrometer head

100 Step graduation micrometer head 0-15mm/0.6"
AccuracyType
0.004mm
