Vernier Caliper|Vernier Calipers|Slide Caliper|Slide Calipers

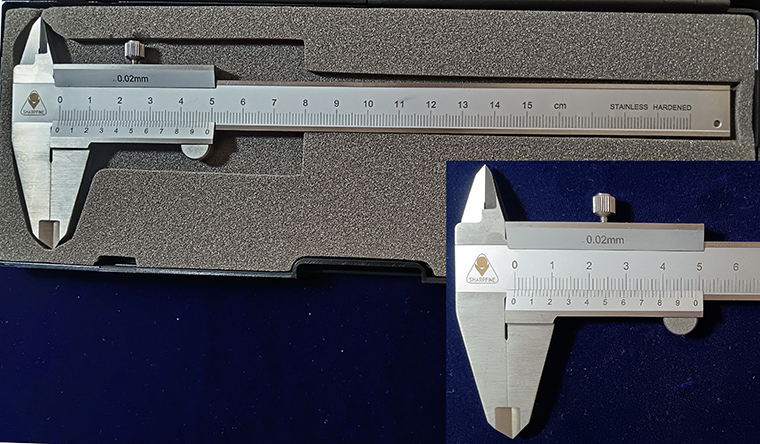

Vernier Caliper (with depth bar)

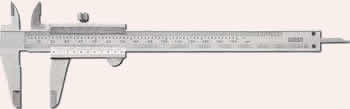

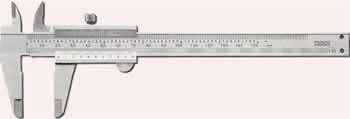

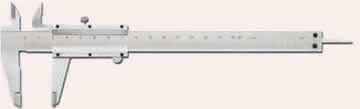

Vernier caliper Type-A1 Vernier calipers Type-A2 Mono-block vernier • Four-way measurements for range 150mm or more.
• Made of stainless steel or carbon steel.

Outside
measurement

Inside
measurement

Step
measurement

Depth
measurement

Slide caliper Type-A1 Type-A2
Range	Grad.	Accuracy	Range	Grad.	Accuracy
0-100mm	0.05mm	±0.05mm	0-100mm	0.05mm/1/128"	±0.05mm
0-125mm	0.05mm	±0.05mm	0-125mm	0.05mm/1/128"	±0.05mm
0-150mm	0.05mm	±0.05mm	0-150mm	0.05mm/1/128"	±0.05mm
0-200mm	0.05mm	±0.05mm	0-200mm	0.05mm/1/128"	±0.05mm
0-250mm	0.05mm	±0.08mm	0-250mm	0.05mm/1/128"	±0.08mm
0-300mm	0.05mm	±0.08mm	0-300mm	0.05mm/1/128"	±0.08mm
0-100mm	0.02mm	±0.02mm	0-100mm	0.02mm/0.001"	±0.02mm
0-125mm	0.02mm	±0.02mm	0-125mm	0.02mm/0.001"	±0.02mm
0-150mm	0.02mm	±0.02mm	0-150mm	0.02mm/0.001"	±0.02mm
0-200mm	0.02mm	±0.03mm	0-200mm	0.02mm/0.001"	±0.03mm
0-250mm	0.02mm	±0.04mm	0-250mm	0.02mm/0.001"	±0.04mm
0-300mm	0.02mm	±0.04mm	0-300mm	0.02mm/0.001"	±0.04mm

100mm slide calipers, 125mm vernier caliper. . . 200mm vernier calipers, 250mm slide caliper, 300 slide calipers.
4" vernier caliper, 5" vernier calipers. . . 8" slide caliper, 12" slide calipers, 10" slide caliper, 12" slide calipers.

Vernier Calipers (without depth bar)

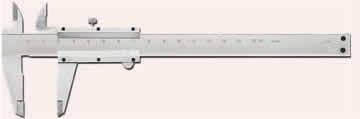

Vernier caliper Type-B2 Mono-block vernier Vernier calipers Type-B1 • Without depth measuring bar.
• With fine adjustment for range 300mm or more.
• Made of stainless steel or carbon steel.

Slide calipers Type-B1 Type-B2
Range	Grad.	Accuracy	Range	Grad.	Accuracy
0-100mm	0.05mm	±0.05mm	0-100mm	0.05mm/1/128"	±0.05mm
0-150mm	0.05mm	±0.05mm	0-150mm	0.05mm/1/128"	±0.05mm
0-200mm	0.05mm	±0.05mm	0-200mm	0.05mm/1/128"	±0.05mm
0-250mm	0.05mm	±0.08mm	0-250mm	0.05mm/1/128"	±0.08mm
0-300mm	0.05mm	±0.08mm	0-300mm	0.05mm/1/128"	±0.08mm
0-500mm	0.05mm	±0.08mm	0-500mm	0.05mm/1/128"	±0.08mm
0-600mm	0.05mm	±0.10mm	0-600mm	0.05mm/1/128"	±0.10mm
0-100mm	0.02mm	±0.02mm	0-100mm	0.02mm/0.001"	±0.02mm
0-150mm	0.02mm	±0.02mm	0-150mm	0.02mm/0.001"	±0.02mm
0-200mm	0.02mm	±0.03mm	0-200mm	0.02mm/0.001"	±0.03mm
0-250mm	0.02mm	±0.04mm	0-250mm	0.02mm/0.001"	±0.04mm
0-300mm	0.02mm	±0.04mm	0-300mm	0.02mm/0.001"	±0.04mm
0-500mm	0.02mm	±0.05mm	0-500mm	0.02mm/0.001"	±0.05mm
0-600mm	0.02mm	±0.07mm	0-600mm	0.02mm/0.001"	±0.07mm

. . .250mm vernier caliper, 300mm vernier calipers, 500mm slide caliper, 600mm slide calipers.
. . .10" vernier caliper, 12" vernier calipers, 20" slide caliper, 24" slide calipers.

Slide Caliper (with edged external measuring jaws)

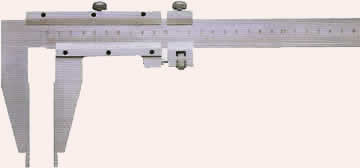

Slide caliper Type-C1 Slide calipers Type-C2 Mono-block vernier • With fine adjustment.
• Made of stainless steel or carbon steel.

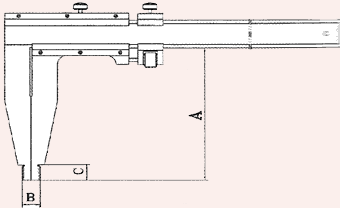

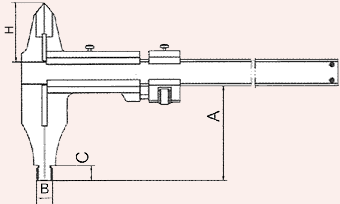

Vernier caliper sketch

Type-C1 Type-C2 Vernier caliper
Range	Grad	A (mm)		B	C	H	Accuracy (mm)
	(mm)	Normal Jaw	Long Jaw	(mm)	(mm)	(mm)	Normal Jaw	Long Jaw
0-200mm	0.05	60	90	10	10	36.5	±0.05	±0.06
0-300mm	0.05	60	90	10	10	36.5	±0.08	±0.10
0-500mm	0.05	100 / 125	150	10	12	55	±0.08	±0.10
0-600mm	0.05	100 / 125	150	10	12	55	±0.10	±0.13
0-800mm	0.05	125 / 150	200	20	18	64	±0.10	±0.14
0-1000mm	0.05	125 / 150	200	20	18	64	±0.10	±0.14
0-1500mm	0.05	125 / 150	200	30	20	73	±0.15	±0.18
0-2000mm	0.05	150	200 / 300	30	20	73	±0.20	±0.26
0-3000mm	0.05	150	200 / 300	30	20	73	±0.30	±0.35

0-200mm	0.02	60	90	10	10	36.5	±0.03	±0.04
0-300mm	0.02	60	90	10	10	36.5	±0.04	±0.06
0-500mm	0.02	100 / 125	150	10	12	55	±0.05	±0.08
0-600mm	0.02	100 / 125	150	10	12	55	±0.07	±0.10
0-800mm	0.02	125 / 150	200	20	18	64	±0.07	±0.11
0-1000mm	0.02	125 / 150	200	20	18	64	±0.07	±0.11
0-1500mm	0.02	125 / 150	200	30	20	73	±0.10	±0.13
0-2000mm	0.02	150	200 / 300	30	20	73	±0.14	±0.20
0-3000mm	0.02	150	200 / 300	30	20	73	±0.26	±0.35

0-200mm	0.05/1/128"	60	90	10	10	36.5	±0.05	±0.06
0-300mm	0.05/1/128"	60	90	10	10	36.5	±0.08	±0.10
0-500mm	0.05/1/128"	100 / 125	150	10	12	55	±0.08	±0.10
0-600mm	0.05/1/128"	100 / 125	150	10	12	55	±0.10	±0.13
0-800mm	0.05/1/128"	125 / 150	200	20	18	64	±0.10	±0.14
0-1000mm	0.05/1/128"	125 / 150	200	20	18	64	±0.10	±0.14
0-1500mm	0.05/1/128"	125 / 150	200	30	20	73	±0.15	±0.18
0-2000mm	0.05/1/128"	150	200 / 300	30	20	73	±0.20	±0.26
0-3000mm	0.05/1/128"	150	200 / 300	30	20	73	±0.30	±0.35

0-200mm	0.02/0.001"	60	90	10	10	36.5	±0.03	±0.04
0-300mm	0.02/0.001"	60	90	10	10	36.5	±0.04	±0.06
0-500mm	0.02/0.001"	100 / 125	150	10	12	55	±0.05	±0.08
0-600mm	0.02/0.001"	100 / 125	150	10	12	55	±0.07	±0.10
0-800mm	0.02/0.001"	125 / 150	200	20	18	64	±0.07	±0.11
0-1000mm	0.02/0.001"	125 / 150	200	20	18	64	±0.07	±0.11
0-1500mm	0.02/0.001"	125 / 150	200	30	20	73	±0.10	±0.13
0-2000mm	0.02/0.001"	150	200 / 300	30	20	73	±0.14	±0.20
0-3000mm	0.02/0.001"	150	200 / 300	30	20	73	±0.26	±0.35

. . .800mm vernier caliper, 1000mm vernier calipers, 1500mm slide caliper, 2000mm slide calipers,
2500mm vernier caliper, 3000mm vernier calipers. . . .40" slide caliper,
60" slide calipers, 80" vernier caliper, 100" vernier calipers, 120" slide caliper.

Slider Calipers (with step measurement)

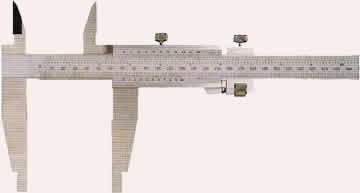

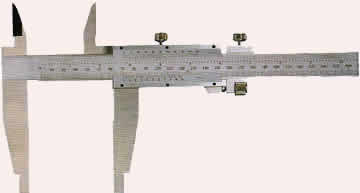

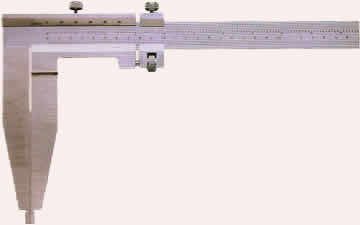

Slide calipers Type-D1 slide caliper Type-D2 Mono-block vernier

• With fine adjustment.
• With step measurement.
• Made of stainless steel or carbon steel.

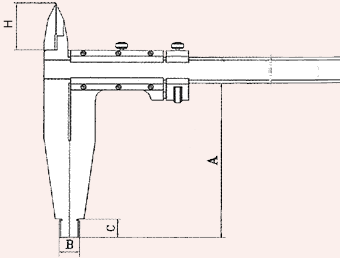

Slide calipers sketch

Type-D1 Type-D2 Vernier calipers
Range	Grad	A (mm)		B	C	Accuracy (mm)
	(mm)	Normal Jaw	Long Jaw	(mm)	(mm)	Normal Jaw	Long Jaw
0-200mm	0.05	60	90	10	10	±0.05	±0.06
0-300mm	0.05	60	90	10	10	±0.08	±0.10
0-500mm	0.05	100 / 125	150	10	12	±0.08	±0.10
0-600mm	0.05	100 / 125	150	10	12	±0.10	±0.13
0-800mm	0.05	125 /150	200	20	18	±0.10	±0.14
0-1000mm	0.05	125 /150	200	20	18	±0.10	±0.14
0-1500mm	0.05	125 / 150	200	20 / 30	20	±0.15	±0.18
0-2000mm	0.05	150	200 / 300	20 / 30	20	±0.20	±0.26
0-2500mm	0.05	150	200 / 300	20 / 30	20	±0.20	±0.26
0-3000mm	0.05	150	200 / 300	20 / 30	20	±0.30	±0.35

0-200mm	0.02	60	90	10	10	±0.03	±0.04
0-300mm	0.02	60	90	10	10	±0.04	±0.06
0-500mm	0.02	100 / 125	150	10	12	±0.05	±0.08
0-600mm	0.02	100 / 125	150	10	12	±0.07	±0.10
0-800mm	0.02	125 / 150	200	20	18	±0.07	±0.11
0-1000mm	0.02	125 / 150	200	20	18	±0.07	±0.11
0-1500mm	0.02	125 / 150	200	30	20	±0.10	±0.13
0-2000mm	0.02	150	300	30	20	±0.14	±0.20
0-2500mm	0.05	150	200 / 300	20 / 30	20	±0.20	±0.26
0-3000mm	0.02	150	300	30	20	±0.26	±0.35

0-200mm	0.05 / 1/128"	60	90	10	10	±0.05	±0.06
0-300mm	0.05 / 1/128"	60	90	10	10	±0.08	±0.10
0-500mm	0.05 / 1/128"	100	150	10	12	±0.08	±0.10
0-600mm	0.05 / 1/128"	100	150	10	12	±0.10	±0.13
0-800mm	0.05 / 1/128"	125	200	20	18	±0.10	±0.14
0-1000mm	0.05 / 1/128"	125	200	20	18	±0.10	±0.14
0-1500mm	0.05 / 1/128"	125	200	30	20	±0.15	±0.18
0-2000mm	0.05 / 1/128"	150	300	30	20	±0.20	±0.26
0-2500mm	0.05 / 1/128"	150	200 / 300	20 / 30	20	±0.20	±0.26
0-3000mm	0.05 / 1/128"	150	300	30	20	±0.30	±0.35

0-200mm	0.02 / 0.001"	60	90	10	10	±0.03	±0.04
0-300mm	0.02 / 0.001"	60	90	10	10	±0.04	±0.06
0-500mm	0.02 / 0.001"	100	150	10	12	±0.05	±0.08
0-600mm	0.02 / 0.001"	100	150	10	12	±0.07	±0.10
0-800mm	0.02 / 0.001"	125	200	20	18	±0.07	±0.11
0-1000mm	0.02 / 0.001"	125	200	20	18	±0.07	±0.11
0-1500mm	0.02 / 0.001"	125	200	30	20	±0.10	±0.13
0-2000mm	0.02 / 0.001"	150	300	30	20	±0.14	±0.20
0-2500mm	0.02 / 0.001"	150	200 / 300	20 / 30	20	±0.20	±0.26
0-3000mm	0.02 / 0.001"	150	300	30	20	±0.26	±0.35

. . .800mm vernier calipers, 1000mm slide caliper, 1500mm slide calipers, 2000mm vernier caliper,
2500mm vernier calipers, 3000mm slide caliper. . . .40" slide calipers,
60" vernier caliper, 80" vernier calipers, 100" slide caliper, 120" slide calipers.

Vernier Caliper (with Edged internal Measuring Jaws)

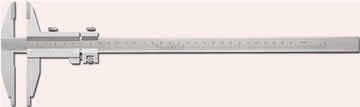

Vernier caliper Type-E1 Vernier calipers Type-E2 Mono-block vernier

• With fine adjustment.
• Made of stainless steel or carbon steel.

Slide caliper sketch

Slide calipers Type-E1 Type-E2
Range	Grad	A (mm)		B	C	H	Accuracy (mm)
	(mm)	Normal Jaw	Long Jaw	(mm)	(mm)	(mm)	Normal Jaw	Long Jaw
0-200mm	0.05	60	90	10	10	36.5	±0.05	±0.06
0-300mm	0.05	60	90	10	10	36.5	±0.08	±0.10
0-500mm	0.05	100 / 125	150	10	12	55	±0.08	±0.10
0-600mm	0.05	100 / 125	150	10	12	55	±0.10	±0.13
0-800mm	0.05	125 / 150	200	20	18	64	±0.10	±0.14
0-1000mm	0.05	125 / 150	200	20	18	64	±0.10	±0.14
0-1500mm	0.05	125 / 150	200	30	20	73	±0.15	±0.18
0-2000mm	0.05	150	300	30	20	73	±0.20	±0.26

0-200mm	0.02	60	90	10	10	36.5	±0.03	±0.04
0-300mm	0.02	60	90	10	10	36.5	±0.04	±0.06
0-500mm	0.02	100	150	10	12	55	±0.05	±0.08
0-600mm	0.02	100	150	10	12	55	±0.07	±0.10
0-800mm	0.02	125	200	20	18	64	±0.07	±0.11
0-1000mm	0.02	125	200	20	18	64	±0.07	±0.11
0-1500mm	0.02	125	200	30	20	73	±0.10	±0.13
0-2000mm	0.02	150	300	30	20	73	±0.14	±0.20

0-200mm	0.05 / 1/128"	60	90	10	10	36.5	±0.05	±0.06
0-300mm	0.05 / 1/128"	60	90	10	10	36.5	±0.08	±0.10
0-500mm	0.05 / 1/128"	100	150	10	12	55	±0.08	±0.10
0-600mm	0.05 / 1/128"	100	150	10	12	55	±0.10	±0.13
0-800mm	0.05 / 1/128"	125	200	20	18	64	±0.10	±0.14
0-1000mm	0.05 / 1/128"	125	200	20	18	64	±0.10	±0.14
0-1500mm	0.05 / 1/128"	125	200	30	20	73	±0.15	±0.18
0-2000mm	0.05 / 1/128"	150	300	30	20	73	±0.20	±0.26

0-200mm	0.02 / 0.001"	60	90	10	10	36.5	±0.03	±0.04
0-300mm	0.02 / 0.001"	60	90	10	10	36.5	±0.04	±0.06
0-500mm	0.02 / 0.001"	100	150	10	12	55	±0.05	±0.08
0-600mm	0.02 / 0.001"	100	150	10	12	55	±0.07	±0.10
0-800mm	0.02 / 0.001"	125	200	20	18	64	±0.07	±0.11
0-1000mm	0.02 / 0.001"	125	200	20	18	64	±0.07	±0.11
0-1500mm	0.02 / 0.001"	125	200	30	20	73	±0.10	±0.13
0-2000mm	0.02 / 0.001"	150	300	30	20	73	±0.14	±0.20

. . .500mm vernier caliper, 600mm vernier calipers, 800mm slide caliper, 1000mm slide calipers,
1500mm vernier caliper, 2000mm vernier calipers. . . .20" slide caliper,
24" slide calipers, 32" vernier caliper, 40" vernier calipers, 60" slide caliper, 80" slide calipers.
