Three Point Micrometer

3 Point Micromete

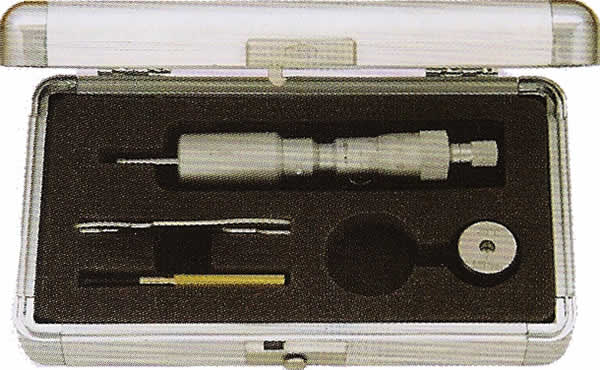

3 point micrometer 3 Point micrometer Type-A With box
• Highly durable because of carbide-tipped contact points.

• two point models for very small holes.

• Ratchet stop.
3 Point micrometer Type-A
RangeAccuracySetting rings
2-2.5mm / 0.08-0.1"0.004mm/0.00016" Ø2.5mm/0.1"
2.5-3mm / 0.1-0.12"0.004mm/0.00016" Ø2.5mm/0.1"
3-4mm / 0.12-0.16"0.004mm/0.00016" Ø4mm/0.16"
4-5mm / 0.16-0.2"0.004mm/0.00016" Ø5mm/0.2"
5-6mm / 0.2-0.24"0.004mm/0.00016" Ø6mm/0.24"
Notice: Chrome-plated surface. Resolution:0.01mm / 0.0001".
0.1" three point micrometer, 0.12" 3 point micrometer, 0.16" three point micrometer, 0.2" 3 point micrometer, 0.24" three point micrometer.

3 point micrometer 3 Point micrometer Type-B With box
• Highly durable because of carbide-tipped contact points.
• Within 100mm/4": Supplied with setting rings.
  Over 12mm/0.5": Titanium-plated anvils are optional.
• Ratchet stop.
Three point micrometer Type-B
RangeAccuracySetting ringsExtension rods
6-8mm / 0.275-0.35"0.004mm/0.00016" Ø6mm/0.275" 100mm/4"
8-10mm / 0.35-0.425"0.004mm/0.00016" Ø8mm/0.35"100mm/4"
10-12mm / 0.425-0.5"0.004mm/0.00016" Ø10mm/0.5"100mm/4"
12-16mm / 0.5-0.65"0.004mm/0.00016" Ø16mm/0.65" 150mm/6"
16-20mm / 0.65-0.8"0.004mm/0.00016" Ø16mm/0.65"150mm/6"
20-25mm / 0.8-1"0.004mm/0.00016" Ø25mm/1"150mm/6"
25-30mm / 1-1.2"0.004mm/0.00016" Ø25mm/1"150mm/6"
30-40mm / 1.2-1.6"0.004mm/0.00016" Ø40mm/1.6"150mm/6"
40-50mm / 1.6-2"0.005mm/0.0002" Ø40mm/1.6"150mm/6"
50-63mm / 2-2.5"0.005mm/0.0002" Ø62mm/2.5"150mm/6"
62-75mm / 2.5-3"0.005mm/0.0002" Ø62mm/2.5"150mm/6"
75-88mm / 3-3.5"0.005mm/0.0002" Ø87mm/3.5"150mm/6"
87-100mm / 3.5-4"0.005mm/0.0002" Ø87mm/3.5"150mm/6"
Notice: Chrome-plated surface. Resolution:0.01mm / 0.0001".
0.35" 3 point micrometer, 0.425" three point micrometer, 0.5" 3 point micrometer,
0.65" three point micrometer, 0.8" 3 point micrometer, 1" three point micrometer. . .

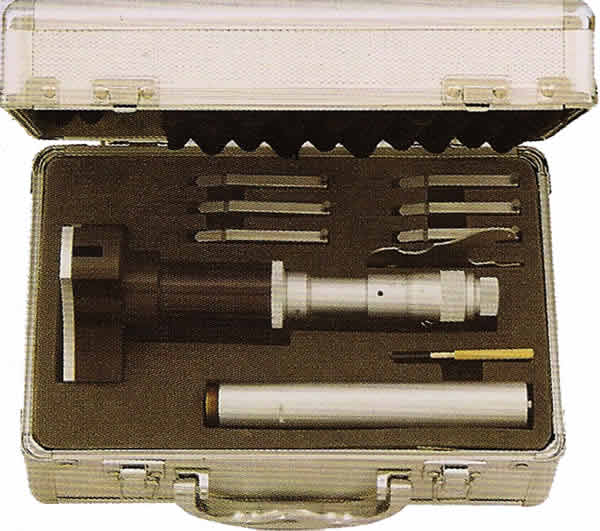

Three point micrometer Type-C Three point micrometer With box
• Over 100mm/4": Setting rings are optional;Measuring heads are interchangeable

• Resolution:0.01mm / 0.0001".

• Ratchet stop. Aluminum body.

• Titanium-plated anvils are optional.
3 Point micrometer Type-C
RangeAccuracySetting ringsExtension rods
50-63mm / 2-2.5"0.005mm/0.0002" Ø62mm/2.5" 150mm/6"
62-75mm / 2.5-3"0.005mm/0.0002" Ø62mm/2.5"150mm/6"
75-88mm / 3-3.5"0.005mm/0.0002"Ø87mm/3.5"150mm/6"
87-100mm / 3.5-4"0.005mm/0.0002" Ø87mm/3.5"150mm/6"
100-125mm / 4-5"0.005mm/0.0002" Ø112.5mm/4.5" 150mm/6"
125-150mm / 5-6"0.005mm/0.0002" Ø137.5mm/5.5"150mm/6"
150-175mm / 6-7"0.005mm/0.0002" Ø162.5mm/6.5"
150mm/6"
175-200mm / 7-8"0.005mm/0.0002" Ø187.5mm/7.5"150mm/6"
200-225mm / 8-9"0.007mm/0.00028" Ø212.5mm/8.5"150mm/6"
225-250mm / 9-10" 0.007mm/0.00028" Ø237.5mm/9.5"150mm/6"
250-275mm / 10-11" 0.007mm/0.00028" Ø262.5mm/10.5"150mm/6"
275-300mm / 11-12" 0.007mm/0.00028" Ø287.5mm/11.5"150mm/6"
Notice:Anodic oxidation surface; Resolution:0.01mm / 0.0001".



Three Point Micrometer Set

Three point micrometer sets
3 Point micrometer set Type-A
Individual range   Setting rings   Piece/set
2-2.5mm / 0.08-0.1", 2.5-3mm / 0.1-0.12" Ø2.5mm/0.1" 2
3-4mm / 0.12-0.16", 4-5mm / 0.16-0.2", 5-6mm / 0.2-0.24" Ø4mm/0.16", Ø5mm, Ø6mm/0.24" 3


Three point micrometer set Type-B list-1
Individual range(Inch) Setting rings Extension rods Piece/set
0.275-0.35", 0.35-0.425", 0.425-0.5" 0.275", 0.35", 0.5"4" 3
0.5-0.65", 0.65-0.8" 0.65"6" 2
0.8-1", 1-1.2", 1.2-1.6" 1", 1.6"6" 3
0.8-1", 1-1.2", 1.2-1.6", 1.6-2" 1", 1.6" 6" 4
1.6-2", 2-2.5", 2.5-3", 3-3.5", 3.5-4" 1.6", 2.5". 3.5"6" 5
2-2.5", 2.5-3", 3-3.5", 3.5-4" 2.5", 3.5" 6" 4
Notice: chrome-plated surface


Three point micrometer set Type-B list-2
Individual range(mm) Setting rings Extension rods Piece/set
6-8, 8-10, 10-12 Ø6, 8, 10mm 100mm 3
12-16, 16-20 Ø16mm 150mm 2
20-25, 25-30, 30-40 Ø25, 40mm 150mm 3
20-25, 25-30, 30-40, 40-50 Ø25, 40mm 150mm 4
40-50, 50-63, 62-75, 75-88, 87-100 Ø40, 62. 87mm 150mm 5
50-63, 62-75, 75-88, 87-100 Ø62. 87mm 150mm 4
Notice: chrome-plated surface


3 Point micrometer set Type-B list-3
Individual range(Inch) Setting rings    Extension rods Piece/set
2-2.5", 2.5-3", 3-3.5", 3.5-4" 2.5", 3.5" 6" 4
Notice: Painted surface


3 Point micrometer set Type-B list-4
Individual range(mm) Setting rings    Extension rods Piece/set
50-63, 62-75, 75-88, 87-100 Ø62, 87mm 150mm 4
Notice: Painted surface


Three point micrometer set Type-C list-1
Individual range(Inch) Setting rings    Extension rods Piece/set
2-2.5", 2.5-3", 3-3.5", 3.5-4" 2.5", 3.5" 6" 4
Notice:Anodic oxidation surface


3 Point micrometer set Type-C list-2
Individual range(mm) Setting rings    Extension rods Piece/set
50-63, 62-75, 75-88, 87-100 Ø62. 87mm 150mm 4
Notice:Anodic oxidation surface
