V anvil Micrometer
V anvil micrometers can be used for measuring diameter of cylinder with an odd number flutes, such as taps, reamers, end mills,etc.
V anvil Micrometer Type-C, 7 flutes 65-85mm
Electronic system
Type-A
3 flutes,5 flutes,7 flutes.
V anvil micrometer
• Protection level: IP54.Criterion:
DIN40050/IEC529 standard.
• Painted frame.
• Ratchet stop.

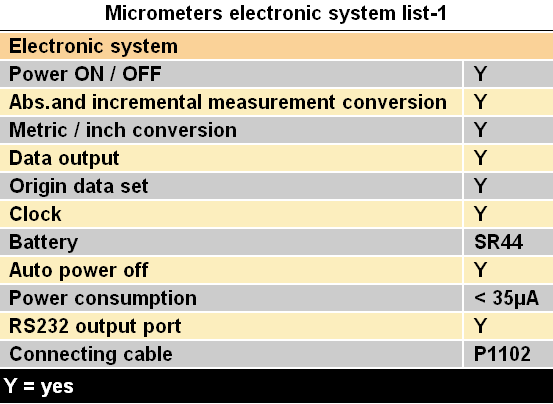

Electronic system
Type-B
3 flutes,5 flutes,7 flutes.
V anvil micrometers
• Protection level: IP54.Criterion:
DIN40050/IEC529 standard.
• Painted frame.
• Double measuring forces.
Type-C
3 flutes,5 flutes,7 flutes.
V anvil micrometer
• Resolution: 0.01mm / 0.0001".• Painted frame.
• Ratchet stop

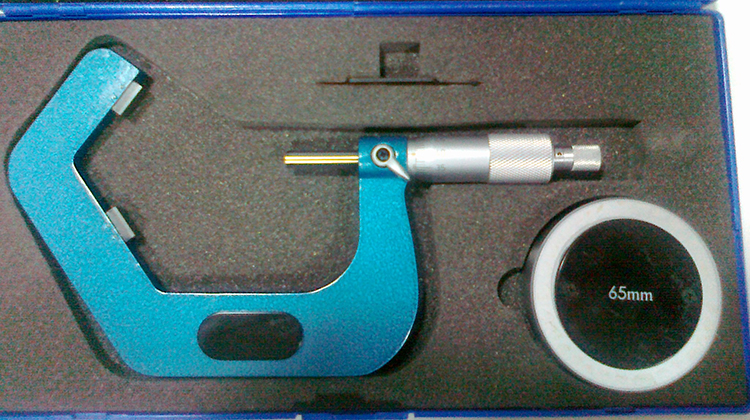

V anvil micrometers picture

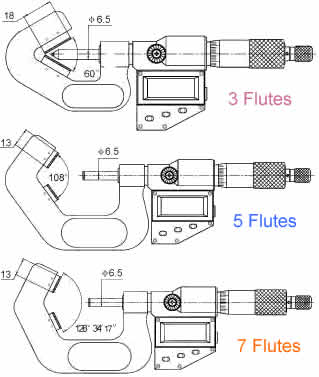

V anvil micrometers sketch
| Range | Accuracy | Range | Accuracy |
|---|---|---|---|
| 3 flutes | |||
| 1-15mm / 0.04-0.6" | 0.004mm | 65-80mm / 2.6-3.2" | 0.006mm |
| 5-20mm / 0.2-0.8" | 0.004mm | 80-95mm / 3.2-3.8 | 0.007mm |
| 20-35mm / 0.8-1.4" | 0.005mm | 2.3-25mm / 0.09-1" | 0.004mm |
| 35-50mm / 1.4-2.0" | 0.005mm | 25-50mm / 1-2" | 0.005mm |
| 50-65mm / 2.0-2.6" | 0.006mm | ||
| 5 flutes | |||
| 5-25mm / 0.2-1" | 0.004mm | 65-85mm / 2.6-3.4" | 0.007mm |
| 25-45mm / 1.0-1.8" | 0.005mm | 85-105mm / 3.4-4.2" | 0.008mm |
| 45-65mm / 1.8-2.6" | 0.006mm | ||
| 7 flutes | |||
| 5-25mm / 0.2-1" | 0.004mm | 45-65mm / 1.8-2.6" | 0.006mm |
| 25-45mm / 1-1.8" | 0.005mm | 65-85mm / 2.6-3.4" | 0.007mm |
| Table for 3 flutes & 5 flutes & 7flutes | |||
Reference hyperlink: Standard for v anvil micrometer.
