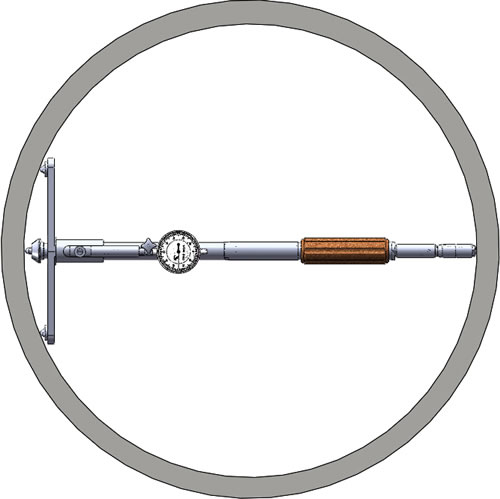

Large Diameter Bore Gage

Sharpfine exclusive large diameter bore gauge with an integrated centering guider is specifically engineered for measuring shallow, large-scale bores. Designed for high accuracy, repeatability, and operational stability.

It precisely measures cylinder bores, large rings, and heavy mechanical housings ranging from 500mm to 1500mm.

Selection Guide:

For internal measurements exceeding 500mm: Please select our specialized Large Diameter Bore Gauge.
For high-precision standard bore measurements: We recommend choosing our Digital Internal Micrometer.

Zero setting Large Diameter Bore Gauge with external micrometer

How to Set Zero Point for Large Diameter Bore Gauge

This video demonstrates the accurate zero-setting procedure for our specialized Large Diameter Bore Gauge using a calibrated external micrometer:
Step 1: Mount and lock the external micrometer to the target reference dimension.
Step 2: Position the bore gauge contact anvils between the micrometer measuring faces.
Step 3: Adjust the gauge indicator to align the pointer/digital display with zero for accurate measurement baseline.

Large Diameter Bore Gauges Specification
Range	Graduation	Accuracy

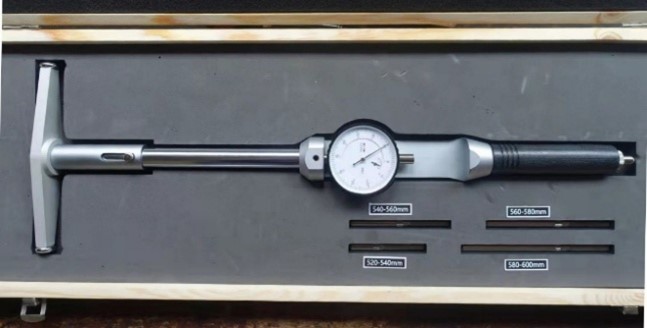

500-600mm	0.01mm	0.015mm
600-700mm	0.01mm	0.015mm
700-800mm	0.01mm	0.015mm
800-900mm	0.01mm	0.015mm
900-1000mm	0.01mm	0.015mm
1000-1100mm	0.01mm	0.015mm
1100-1200mm	0.01mm	0.015mm
1200-1300mm	0.01mm	0.015mm
1300-1400mm	0.01mm	0.015mm
1400-1500mm	0.01mm	0.015mm
