Caliper Type Micrometer

These caliper type micrometers enable the measuring of hard-to-reach parts. Carbide measuring faces.
  • Protection level: IP54.
  • Criterion: DIN40050/IEC529 standard.
  • Carbide measuring faces.
  • Painted frame.

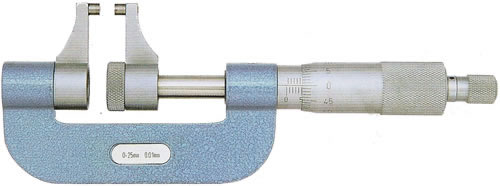

Caliper type micrometer
Caliper type micrometer Type-A
  • Carbide measuring faces.
  • Painted frame.

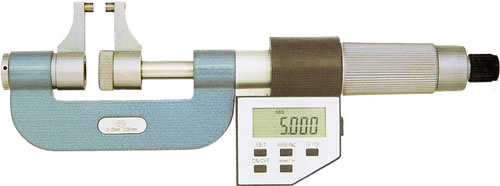

Caliper type micrometer
Caliper type micrometer - Type-B
Caliper type micrometers Type-A Type-B
RangeAccuracyRangeAccuracy
0-25mm / 0-1"0.005mm50-75mm / 2-3"0.007mm
25-50mm / 1-2"0.006mm75-100mm / 3-4"0.008mm
Calier type micrometers

1" caliper type micrometers, 1-2" caliper type micrometers,
2-3" caliper type micrometers, 3-4" caliper type micrometer.

Reference:
Internal Groove Micrometer
