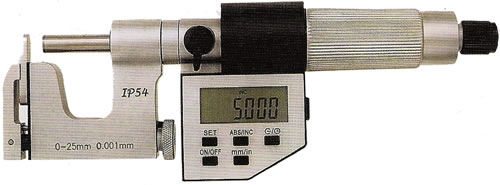

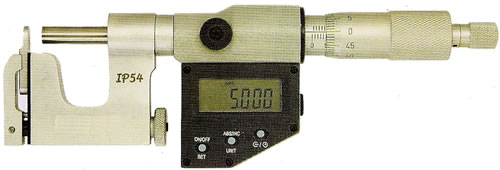

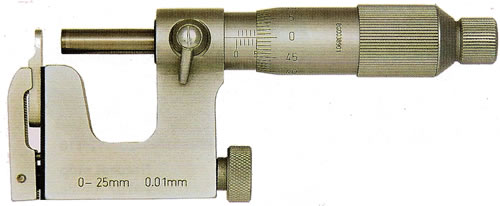

Uni-Micrometer

Be used to measuring tube thickness,shoulder-edge distance,a distance between groove and face,etc.with interchangeable anvils (flat anvil and rod anvil); measuring step height when removing anvils and clamp.

Interchangeable anvils.
Protection level: IP54.
Criterion: DIN40050/IEC529 standard.
Chrome-plated frame.

Resolution: 0.01mm / 0.0001".
Chrome-plated frame.

Uni-micrometers Type-A Type-B Type-C
Range	Accuracy	Range	Accuracy
0-25mm / 0-1"	0.004mm	25-50mm / 1-2"	0.004mm
Notice:Chrome-plated frame

1" Uni-micrometers, 2" Uni-micrometer.

Reference:

Tube micrometer Universal micrometer Tube thickness caliper
