Circumference Diameter Ruler
We offer customized services for the circumference diameter ruler to meet the specific requirements of our clients.
As per our client request，the circumference diameter ruler can be calibrated by Third-party detection institution.
Circumference diameter ruler can be used for measuring the circumference and diameter.
Resolution:0.1mm / .005”.
It is reading of circumference on the lower scale,but reading of diameter on the upper scale.
Measuring range from Ø50 (20)mm / 2”(.8”) to Ø12000mm / 480”.
Made of stainless steel.
These Precision Circumference tapes/rulers are constructed with a 12mm （.48”）widede
Main Body and the standard thickness of the material is 0.25mm (.010" )
Video: Sharpfine's customer is measuring the diameter of large workpieces with a
circumference diameter ruler ranging from 5400mm to 7500mm.
Resolution:0.1mm / .005”.
It is reading of circumference on the lower scale,but reading of diameter on the upper scale.
Measuring range from Ø50 (20)mm / 2”(.8”) to Ø12000mm / 480”.
Made of stainless steel.
These Precision Circumference tapes/rulers are constructed with a 12mm （.48”）widede
Main Body and the standard thickness of the material is 0.25mm (.010" )
Video: Sharpfine's customer is measuring the diameter of large workpieces with a
circumference diameter ruler ranging from 5400mm to 7500mm.

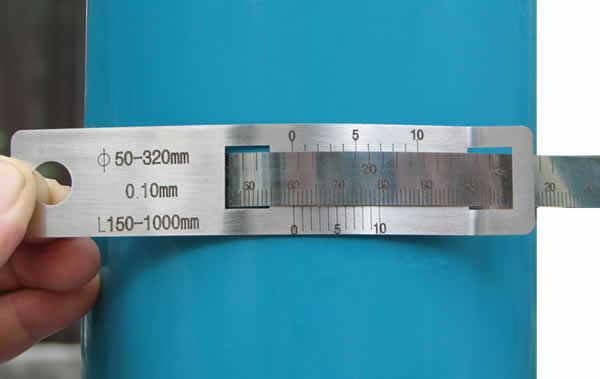

Circumference Diameter Ruler Ø 50 – 320 mm，0.1mm
customized circumference ruler，specialty sizes available upon request

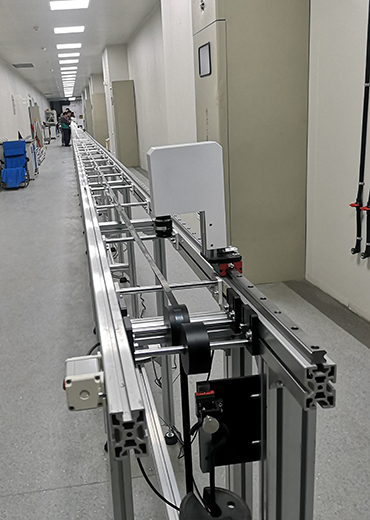

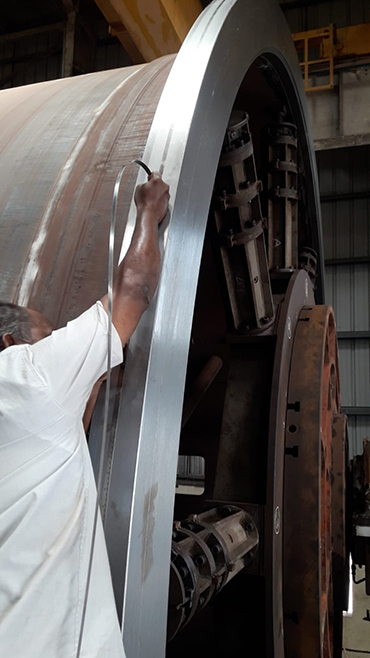

| circumference diameter ruler calibration | Circumference diameter ruler application |
For circumference diameter rule/tape，specialty sizes available upon client request.
Calibration
certificate of circumference ruler/tape available upon client request.
| Range | Range | Range |
|---|---|---|
| 50 - 300mm / 2-12" | 4200 - 4500mm / 168-180" | 8400 - 8700mm / 336-348" |
| 300 - 600mm / 12-24" | 4500 - 4800mm / 180-192" | 8700 - 9000mm / 348-360" |
| 600 - 900mm / 24-36" | 4800 - 5100mm / 192-204" | 9000 - 9300mm / 360-372" |
| 900 - 1200mm / 36-48" | 5100 - 5400mm / 204-216" | 9300 - 9600mm / 372-384" |
| 1200 - 1500mm / 48-60" | 5400 - 5700mm / 216-228" | 9600 - 9900mm / 384-396" |
| 1500 - 1800mm / 60-72" | 5700 - 6000mm / 228-240" | 9900 - 10200mm / 396-408" |
| 1800 - 2100mm / 72-84" | 6000 - 6300mm / 240-252" | 10200 - 10500mm/ 408-420" |
| 2100 - 2400mm / 84-96" | 6300 - 6600mm / 252-264" | 10500 - 10800mm / 420-432" |
| 2400 - 2700mm / 96-108" | 6600 - 6900mm / 264-276" | 10800 - 11100mm / 432-444" |
| 2700 - 3000mm / 108-120" | 6900 - 7200mm / 276-288" | 11100 - 11400mm / 444-456" |
| 3000 - 3300mm / 120-132" | 7200 - 7500mm / 288-300" | 11400 - 11700mm / 456-468" |
| 3300 - 3600mm / 132-144" | 7500 - 7800mm / 300-312" | 11700 - 12000mm / 468-480" |
| 3600 - 3900mm / 144-156" | 7800 - 8100mm / 312-324" | |
| 3900 - 4200mm / 156-168" | 8100 - 8400mm / 324-336" |
specialty sizes available upon request.
Frequently asked questions:
| Pi Tape / Diameter Tape | Range: up to 9600mm.. |
| Long Jaw Caliper | Range: up to 5000mm / 200". |
| Large Vemier Caliper | Range: up to 6000mm / 240". |
| Large Micrometers | Range: up to 2000mm / 80 ". |
| Large Diameter Bore Gauges | Range: up to 1500mm / 60". |
| Large Digital Caliper | Range ： up to 4000mm / 160". |
| Pipe thickness gauge | Range ： up to 120mm |
| Automatic testing machine for pipeline | Range ： as per customer's requirement |
