Turning Tool with Pin lever locking


Turning tools with pin lever locking are used in some processing to avoid interference between the tool and the workpiece.

      external-P    external-P
     External Turning Tool holder，Pin lever locking system  Pin lever locking



          external-P

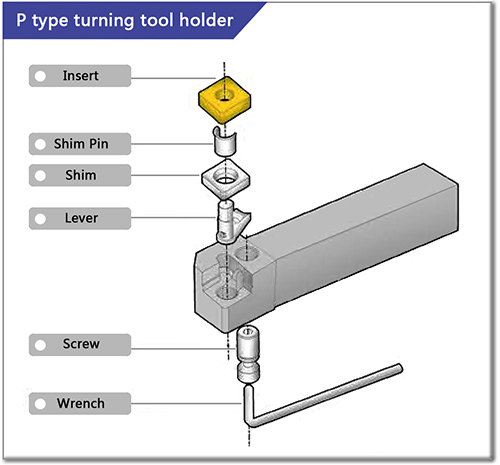

           The composition of the Turning Tool with Pin lever locking system

    Feature
  1. Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
  2. The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
  3. The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.

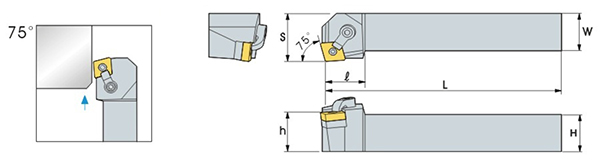

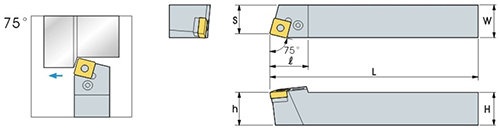

      1.   PCKNR/L   turning tool Kr 75°



external-P external-P
CN type insertTurning tool with Kr75°

     PCKNR/L tool holder parameters    (mm)

     Designation  size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PCKNR/L1616H12 16 16 100 27 16 20 CN**1204** SC42 LV4 VHX0821 SP4 L3.0
PCKNR/L2020K12 20 20 125 27 20 25
PCKNR/L2525M12 25 25 150 30 25 32
PCKNR/L2525M16 25 25 150 33 25 32 CN**1606** SC53 LV5 VHX0825 SP5 L3.0
PCKNR/L3232P16 32 32 170 33 32 40
PCKNR/L3232P19 32 32 170 38 32 32 CN**1906 SC63N LV6 VHX1027 SP6 L4.0

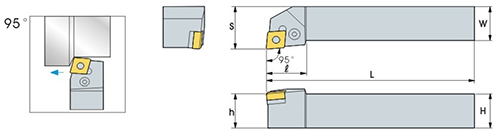

      2.   PCLNR/L   turning edge anglel 95°

external-P CN type insert external-P

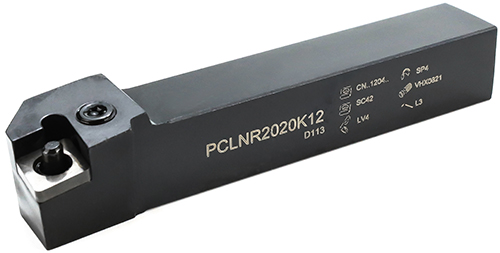

Turning tool holder PCLNR


external-P
Turning tool with Kr 95°




     PCLNR/L tool holder parameters    (mm)

      Designation size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PCLNR/L1616H12 16 16 100 28 16 20 CN**1204** SC42 LV4 VHX0821 SP4 L3.0
PCLNR/L2020K12 20 20 125 28 20 25
PCLNR/L2525M12 25 25 150 28 25 32
PCLNR/L3232P12 32 32 170 30 32 40
PCLNR/L2525M16 25 25 150 34 25 32 CN**1606** SC53 LV5 VHX0825 SP5 L3.0
PCLNR/L3232P16 32 32 170 34 32 40
PCLNR/L3232P19 32 32 170 38 32 40 CN**1906** SC63N LV6 VHX1027 SP6 L4.0
PCLNR/L4040R19 40 40 200 38 40 50

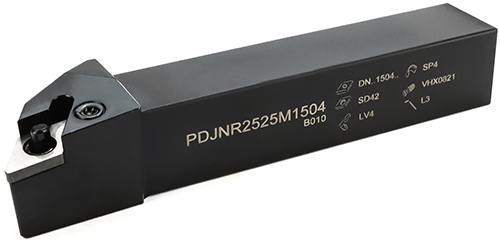

      3.    PDJNR/L   Turing tool Kr 93°

external-P DN type insert external-P

Turning tool holder PDJNR


external-P
Turning tool with Kr93°




    PDJNR/L tool holder parameters    (mm)

  Designation size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PDJNR/L1616H11 16 16 100 26 16 20 DN**1104** SD317 LV3 VHX0617 SP3 L2.5
PDJNR/L2020K11 20 20 125 26 20 25
PDJNR/L2525M11 25 25 150 26 25 32
PDJNR/L2020K1504 20 20 125 36 20 25 DN**1504** SD42 LV4 VHX0821 SP4 L3.0
PDJNR/L2525M1504 25 25 150 36 25 32
PDJNR/L3232P1504 32 32 170 36 32 40
PDJNR/L2020K1506 20 20 125 36 20 25 DN**1506** SD42 LV4B VHX0821 SP4 L3.0
PDJNR/L2525M1506 25 25 150 36 25 32
PDJNR/L3232P1506 32 32 170 36 32 40

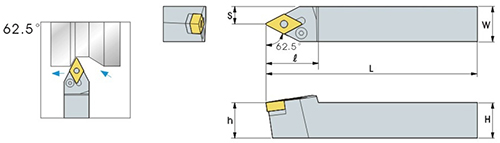

      4.   PDNNR/L   Turing tool Kr 62.5°


external-P external-P
DN type insertTurning tool with Kr 62.5°



    PDNNR/L tool holder parameters    (mm)


Designation  size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PDNNR/L2020K1506 20 20 125 37 20 10 DN**1506** SD42 LV4B VHX0821 SP4 L3.0
PDNNR/L2525M1506 25 25 150 40 25 12.5
PDNNR/L2020K1504 20 20 125 37 32 10 DN**1504** SD42 LV4 VHX0821 SP4 L3.0
PDNNR/L2525M1504 25 25 150 37 32 12.5

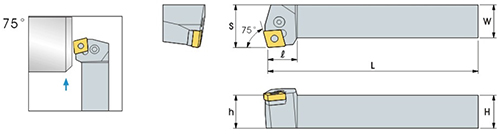

      5.  PSBNR/L  Turning tool Kr 75°


external-P external-P
SN type insertTurning tool with Kr 75°



     PSBN/L tool holder parameters    (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PSBNR/L2020K12 20 20 125 30 20 17 SN**1204** SS42 LV4 VHX0821 SP4 L3.0
PSBNR/L2525M12 25 25 150 30 25 22
PSBNR/L3232P12 32 32 170 42 32 27




      6.  PSDNN   turning tool holder Kr 50°

external-P external-P
SN type insertTurning tool with Kr 45°



    PSDNN tool holder parameters   (mm)


Designation size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PSDNN2020K12 20 20 125 32 20 10 SN**1204** SS42 LV4 VHX0821 SP4 L3.0
PSDNN2525M12 25 25 150 32 25 12.5
PSDNN3232P12 32 32 170 35 32 16



      7. PSKNR/L  Cutting edge angle Kr 75°

external-P SN type insert external-P

Turning tool holder PSKNR


external-P
Turning tool with Kr 75°




    PSKNR/L tool holder parameters   (mm)

  Designation  size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PSKNR/L2020K12 20 20 125 29 20 25 SN**1204** SS42 LV4 VHX0821 SP4 L3.0
PSKNR/L2525M12 25 25 150 29 25 32
PSKNR/L3232P12 32 32 170 29 32 40

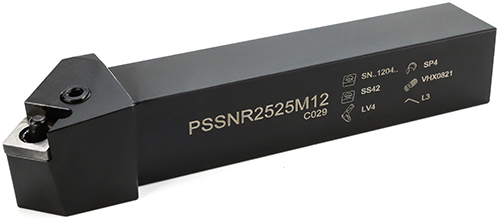

      8.  PSSNR/L  cutting edge angle Kr 45°



external-P SN type insert external-P

Turning tool holder PSSNR


external-P
Turning tool with Kr 75°




    PSSNR/L tool holder parameters   (mm)


Designation size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PSSNR/L2020K12 20 20 125 34 20 25 SN**1204** SS42 LV4 VHX0821 SP4 L3.0
PSSNR/L2525M12 25 25 150 34 25 32
PSSNR/L3232P12 32 32 170 34 32 40
PSSNR/L2525M15 25 25 150 36 25 32 SN**1506** SS53 LV5 VHX0825 SP5 L3.0
PSSNR/L3232P15 32 32 170 36 32 40
PSSNR/L3232P19 32 32 170 43 32 40 SN**1906 SS63 LV6 VHX1027 SP6 L4.0

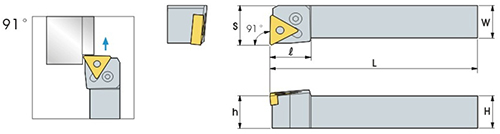

      9.  PTFNR/L  Turing tool holder Kr 91°

external-P external-P
TN type insertTurning tool with Kr 91°



     PTFNR/L tool holder parameters    (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PTFNR/L1616H16 16 16 100 20 16 20 TN**1604** ST317 LV3 VHX0617 SP3 L2.5
PTFNR/L2020K16 20 20 125 26 20 25
PTFNR/L2525M16 25 25 150 26 25 32
PTFNR/L2525M22 25 25 150 25 25 32 TN**2204** ST42 LV4 VHX0821 SP4 L3.0
PTFNR/L3232P22 32 32 170 30 32 40

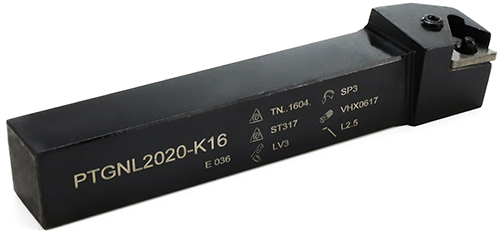

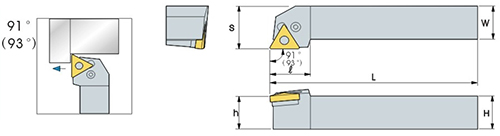

      10.  PTGNR/L & PTJNR/L  Cutting edge angle Kr 91° or Kr 93°



external-P TN type insert external-P

Turning tool holder PTGNL


external-P
Turning tool with Kr 91(93°）




    PTGNR/L tool holder parameters   (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PTG(J)NR/L1616H16 16 16 100 26 16 20 TN**1604** ST317 LV3 VHX0617 SP3 L2.5
PTG(J)NR/L2020K16 20 20 125 26 20 25
PTG(J)NR/L2525M16 25 25 150 26 25 32
PTG(J)NR/L2525M22 25 25 150 28 25 32 TN**2204** ST42 LV4 VHX0821 SP4 L3.0
PTG(J)NR/L3232P22 32 32 170 30 32 40




      11.  PWLNR/L  Cutting tool with Kr 95°



external-P WN type insert external-P

Turning tool holder PWLNR


external-P
Turning tool with Kr 95°




    PWLNR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Shim Lever Screw ShimPin Wrench
Тип  Плас Прок Пале винт Прок Ключ
PWLNR/L1616H06 16 16 100 20 16 20 WN**0604** SW317 LV3 VHX0617 SP3 L2.5
PWLNR/L2020K06 20 20 125 26 20 25
PWLNR/L1616H08 16 16 100 26 16 20 WN**0804** SW42 LV4 VHX0821 SP4 L3.0
PWLNR/L2020K08 20 20 125 28 20 25
PWLNR/L2525M08 25 25 150 30 25 32
