Turning Tool with Screw clamp system (SECOND)


Screw clamp turning tools which have simple structure with relief angle α7° or α5°, are suitable for various light cutting processes or fine turning , for processing workpieces with a smaller cutting allowance and higher requirements for smoothness.

      external-S    external-S

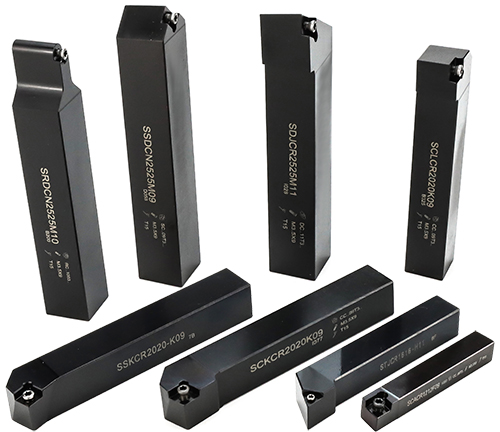

External Turning Tool holder，Screw clamp system Screw clamp



          external-S

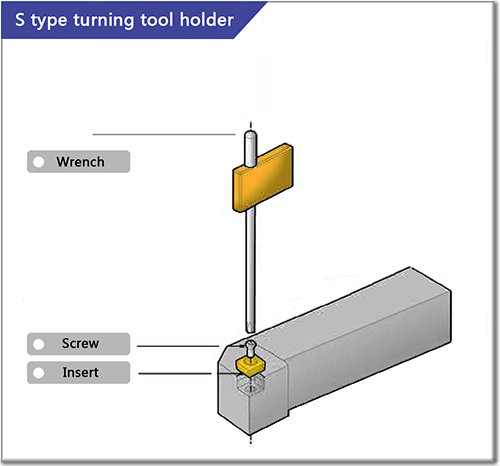

          The composition of the Turning Tool with Screw clamp system

    Feature
  1. Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
  2. The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
  3. The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.



      17.   SSBCR/L  Entering angle 75° and relief angle α7°




external-S   external-S
SC type insertTurning tool with Kr 75° and relief angle α7°



     SSBCR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SSBCR/L1212F09 12 12 80 18 12 9.5 SC**09T3** M3.5X9 T15
SSBCR/L1616H09 16 16 100 18 16 13
SSBCR/L2020K09 20 20 125 18 20 17
SSBCR/L2020K12 20 20 125 22 20 17 SC**1204** M5X12 T20
SSBCR/L2525M12 25 25 150 22 25 22

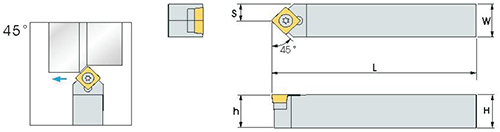

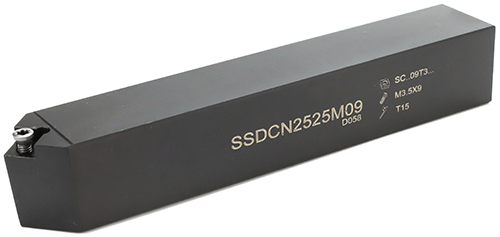

      18.   SSDCN   Turning tool Kr 45° and relief angle α7°

external-S SC type insert external-S

Turning tool holder SSDCN


external-S
Turning tool with Kr 45° and relief angle α7°


     SSDCN tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SSDCN1212F09 12 12 80 16 12 6 SC**09T3** M3.5X9 T15
SSDCN1616H09 16 16 100 16 16 8
SSDCN2020K09 20 20 125 16 20 10
SSDCN2525M09 25 25 150 16 25 12.5

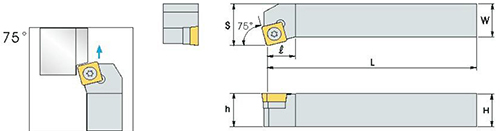

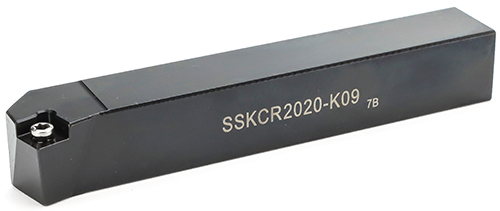

      19.    SSKCR/L   Turning tool Kr 75° and relief angle α7°


external-S SC type insert external-S

Turning tool holder SSKCR

external-S

Turning tool with Kr 75° and relief angle α7°




    SSKCR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SSKCR/L1212F09 12 12 80 16 12 16 SC**09T3** M3.5X9 T15
SSKCR/L1616H09 16 16 100 16 16 20
SSKCR/L2020K09 20 20 125 18 20 25
SSKCR/L2525M09 25 25 150 25 25 32
SSKCR/L2525M12 25 25 150 25 25 32 SC**1204 M5X12 T20

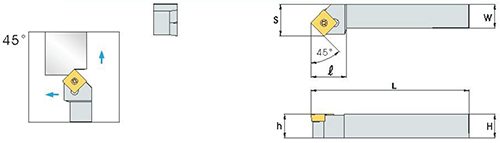

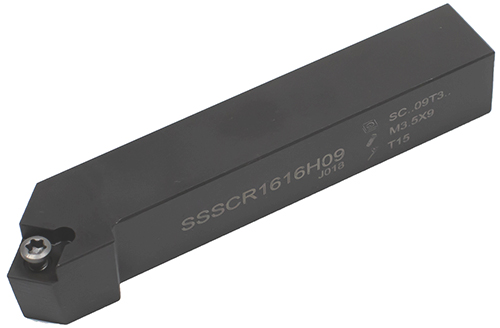

      20.   SSSCR/L   Turning tool Kr 45° and relief angle α7°

external-S SC type insert external-S

Turning tool holder SSSCR


external-S
Turning tool with Kr 45° and relief angle α7°




    SSSCR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SSSCR/L1212F09 12 12 80 16 12 16 SC**09T3** M3.5X9 T15
SSSCR/L1616H09 16 16 100 16 16 20
SSSCR/L2020K09 20 20 125 18 20 25
SSSCR/L2525M09 25 25 150 25 25 32
SSSCR/L2525M12 25 25 150 25 25 32 SC**1204 M5X12 T20



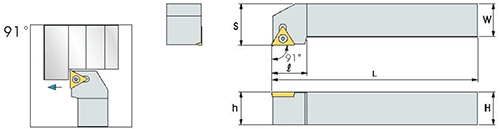

      21.  STGCR/L  tool holder Kr 91° and relief angle α7°


external-S   external-S
TC type insertTurning tool with Kr 91° and relief angle α7°



     STGCR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
STGCR/L1616H11 16 16 100 14 16 20 TC**1102 M2.5X8 T8
STGCR/L1616H16 16 16 100 14 16 20 TC**16T3** M3.5X9 T15
STGCR/L2020K16 20 20 125 20 20 25
STGCR/L2525M16 25 25 150 20 25 32

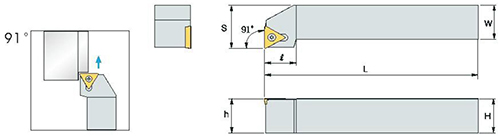

      22.  STFCR/L Turning tool Kr 91° and relief angle α7°

external-S   external-S
TC type insertTurning tool with Kr 91° and relief angle α7°



    STFCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
STFCR/L1212F09 12 12 80 14 12 16 TC**0902 M2.2X6 T8
STFCR/L1212F11 12 12 80 14 12 16 TC**1102** M2.5X8 T8
STFCR/L1616H11 16 16 100 14 16 20
STFCR/L1616H16 16 16 100 22 16 20 TC**16T3** M3.5X9 T15
STFCR/L2020K16 20 20 125 22 20 25
STFCR/L2525M16 25 25 150 22 25 32
STFCR/L3232P16 32 32 170 22 32 40

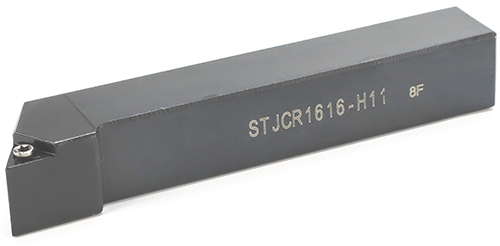

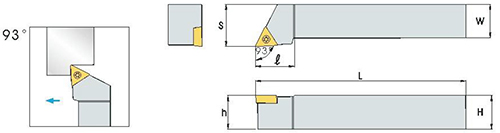

      23. STJCR/L Entering angle Kr 93 ° and relief angle α7°

external-S TC type insert external-S

Turning tool holder STJCR


external-S
Turning tool with Kr 93° and relief angle α7°




    STJCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
STJCR/L1212F11 12 12 80 18 12 16 TC**1102** M2.5X8 T8
STJCR/L1616H11 16 16 100 18 16 20

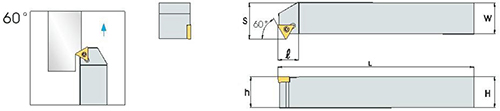

      24.  STWCR/L  Entering angle Kr 60° and relief angle α7°


external-S     external-S
TC type insertTurning tool with Kr 60° and relief angle α7°



    STWR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
STWCR/L1616H11 16 16 100 8 16 19.5 TC**1102** M2.5X8 T8
STWCR/L2020K11 20 20 125 8 20 23.5
STWCR/L2525M11 25 25 150 8 25 28.5
STWCR/L1616H16 16 16 100 12 16 20 TC**16T3** M3.5X9 T15
STWCR/L2020K16 20 20 125 12 20 26
STWCR/L2525M16 25 25 150 12 25 31
STWCR/L3232P16 32 32 170 12 32 38

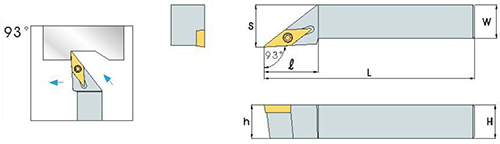

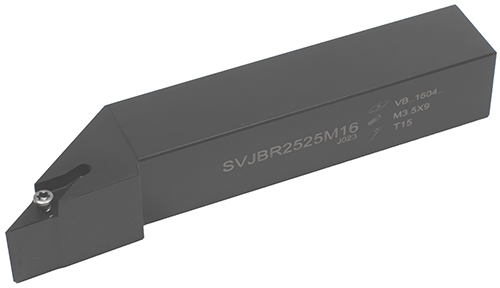

      25.  SVJBR/L  turning tool holder Kr 93° and relief angle α7°

external-S VB type insert external-S

Turning tool holder SVJBR


external-S
Turning tool with Kr 93° and relief angle α5°




     SVJBR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SVJBR/L1212F11 12 12 80 22 12 16 VB**1103** M2.5X8 T8
SVJBR/L1616H11 16 16 100 25 16 20
SVJBR/L2020K11 20 20 125 32 20 25
SVJBR/L2525M11 25 25 150 38 25 32
SVJBR/L1616H16 16 16 100 30 16 20 VB**1604** M3.5X9 T15
SVJBR/L2020K16 20 20 125 32 20 25
SVJBR/L2525M16 25 25 150 40 25 32
SVJBR/L3232P16 32 32 170 45 32 40




      26.  SVJCR/L  Entering angle Kr 93° and relief angle α7°

external-S    external-S
VC type insertTurning tool with Kr 93° and relief angle α7°



    SVJCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SVJCR/L1212F11 12 12 80 22 12 16 VC**1103** M2.5X8 T8
SVJCR/L1616H11 16 16 100 25 16 20
SVJCR/L2020K11 20 20 125 32 20 25
SVJCR/L2525M11 25 25 150 38 25 32
SVJCR/L1616H16 16 16 100 30 16 20 VC**1604** M3.5X9 T15
SVJCR/L2020K16 20 20 125 32 20 25
SVJCR/L2525M16 25 25 150 40 25 32
SVJCR/L3232P16 32 32 170 45 32 40

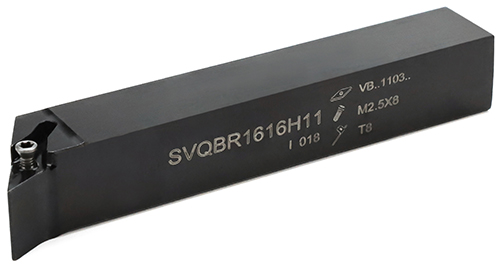

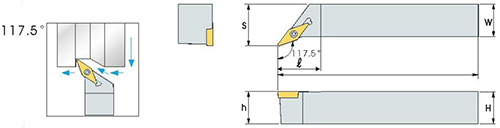

      27.  SVQBR/L  cutting tool with Kr 117.5° and relief angle α7°

external-SVB type insert external-S

Turning tool holder SVQBR


external-S
Turning tool with Kr 117.5° and relief angle α5°




    SVQBR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SVQBR/L1616H11 16 16 100 35 16 20 VB**1103** M2.5X8 T8
SVQBR/L2020K11 20 20 125 35 20 25
SVQBR/L2525M11 25 25 150 35 25 32
SVQBR/L1616H16 16 16 100 35 16 20 VB**1604** M3.5X9 T15
SVQBR/L2020K16 20 20 125 35 20 25
SVQBR/L2525M16 25 25 150 35 25 32
SVQBR/L3232P16 32 32 170 35 32 40

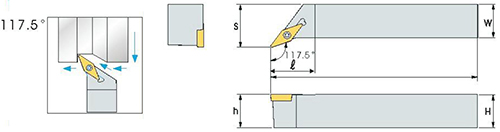

      28.  SVQCR/L  Entering angle Kr 117.5° and relief angle α7°

external-S     external-S
VC type insertTurning tool with Kr 117.5° and relief angle α7°



    SVQCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SVQCR/L1616H11 16 16 100 35 16 20 VC**1103** M2.5X8 T8
SVQCR/L2020K11 20 20 125 35 20 25
SVQCR/L2525M11 25 25 150 35 25 32
SVQCR/L1616H16 16 16 100 35 16 20 VC**1604** M3.5X9 T15
SVQCR/L2020K16 20 20 125 35 20 25
SVQCR/L2525M16 25 25 150 35 25 32
SVQCR/L3232P16 32 32 170 35 32 40

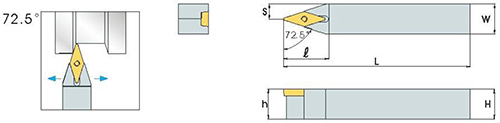

      29.  SVVBN  Entering angle Kr 72.5° and relief angle α7°



external-S     external-S
VB type insertTurning tool with Kr 72.5° and relief angle α5°



    SVVBNtool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SVVBN1212F11 12 12 80 24 12 6 VB**1103** M2.5X8 T8
SVVBN1616H11 16 16 100 24 16 8
SVVBN2020K11 20 20 125 24 20 10
SVVBN2525M11 25 25 150 24 25 12.5
SVVBN1616H16 16 16 100 34 16 8 VB**1604** M3.5X9 T15
SVVBN2020K16 20 20 125 34 20 10
SVVBN2525M16 25 25 150 34 25 12.5
SVVBN3232P16 32 32 170 34 32 16

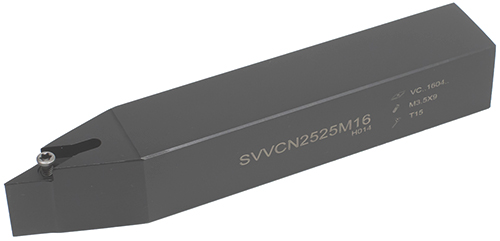

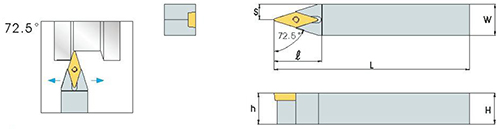

      30.  SVVCN cutting tool with Kr 72.5° and relief angle α7°

external-S VC type insert external-S

Turning tool holder SVVCN


external-S
Turning tool with Kr 72.5° and relief angle α7°




    SVVCN tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SVVCN1212F11 12 12 80 24 12 6 VC**1103** M2.5X8 T8
SVVCN1616H11 16 16 100 24 16 8
SVVCN2020K11 20 20 125 24 20 10
SVVCN2525M11 25 25 150 24 25 12.5
SVVCN1616H16 16 16 100 34 16 8 VC**1604** M3.5X9 T15
SVVCN2020K16 20 20 125 34 20 10
SVVCN2525M16 25 25 150 34 25 12.5
SVVCN3232P16 32 32 170 34 32 16

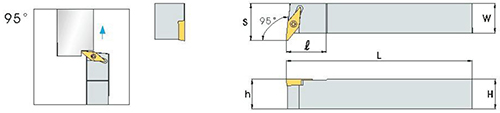

      31.  SVUCR/L  Entering angle Kr 95° and relief angle α7°

external-S     external-S
VC type insertTurning tool with Kr 95° and relief angle α7°



    SVUCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SVUCR/L1212H11 12 12 100 14 12 20 VC**1103** M2.5X8 T8
SVUCR/L1616H11 16 16 100 14 16 20
SVUCR/L2020K16 20 20 125 18 20 30 VC**1604** M3.5X9 T15
SVUCR/L2525M16 25 25 150 18 25 35
