Dial Bore Indicator

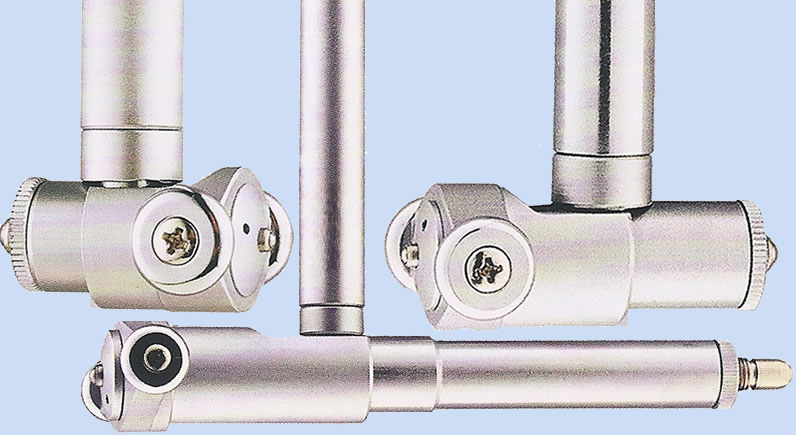

Dial bore indicator Type-A Main body: Wheel guide and screw anvils.

Dial bore indicator

• With 0-3mm universal dial indicator.

• Wheel guide.

• With screw anvils,convenience to set the dimension.

Dial bore indicator Type-A list-1
Range	Grad.	Depth	Anvils	Rod
35-50mm	0.01mm	150mm	3
50-100mm	0.01mm	150mm	5
50-160mm	0.01mm	150mm	5	1
160-250mm	0.01mm	250mm	5
250-450mm	0.01mm	250mm	5	1
100-250mm	0.01mm	250mm	4	1
Depth = Measuring depth: Anvils = Interchangeable anvils. Rod = Extension rod.

50mm dial bore gauge, 100mm dial bore gage, 160mm dial bore gauge, 250mm dial bore gage, 450mm dial bore gauge.

Dial bore indicator Type-A list-2 (for deep holes)
Range	Grad.	Measuring depth
35-50mm	0.01mm	500, 1000, 1500, 2000mm is optional
50-100mm	0.01mm	500, 1000, 1500, 2000mm is optional
50-160mm	0.01mm	500, 1000, 1500, 2000mm is optional
160-250mm	0.01mm	500, 1000, 1500, 2000mm is optional
250-450mm	0.01mm	500, 1000, 1500, 2000mm is optional

50mm dial bore gage, 100mm dial bore gauge, 160mm dial bore gage, 250mm dial bore gauge, 450mm dial bore gage.

Zero-setting process of dial bore indicator

Zero-setting process of dial bore gauge

Reference hyperlink:

Cylinder bore gauge	Range: ~450mm; Measuring depth: ~400mm.
Bore gauge	Range: ~35mm, Measuring depth: ~150mm.
Precision bore gauge	Range: ~450mm / 16"; Graduation: 0.001mm / 0.0001"
Large diameter gage	Range: ~1200mm; Graduation: 0.001mm or 0.001mm
