Dial Caliper Gage

Dial caliper gage Type-A Internal dial caliper gage sketch

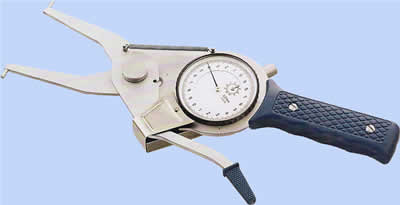

Internal dial caliper gage picture

• The internal dial caliper gage with measuring

range over 215mm can be made upon request.

• The shockproof type dial caliper gage can be

supplied upon request.

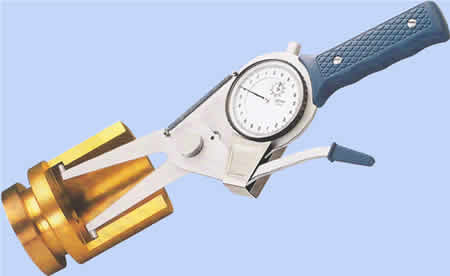

Internal dial caliper gage
Range	Grad.	A	B	L
15-35mm	0.01mm	3mm	Ø3mm	50mm
35-55mm	0.01mm	6mm	Ø3mm	80mm
55-75mm	0.01mm	8mm	Ø3mm	90mm
75-95mm	0.01mm	8mm	Ø3mm	100mm
95-115mm	0.01mm	10mm	Ø3.2mm	150mm
115-135mm	0.01mm	10mm	Ø3.2mm	150mm
135-155mm	0.01mm	10mm	Ø3.2mm	200mm
155-175mm	0.01mm	10mm	Ø3.2mm	200mm
175-195mm	0.01mm	10mm	Ø3.2mm	200mm
195-215mm	0.01mm	10mm	Ø3.2mm	200mm

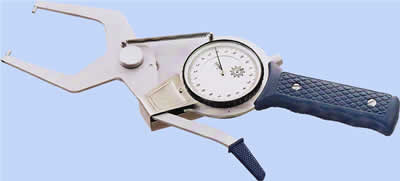

Dial caliper gage Type-B External dial caliper gage sketch

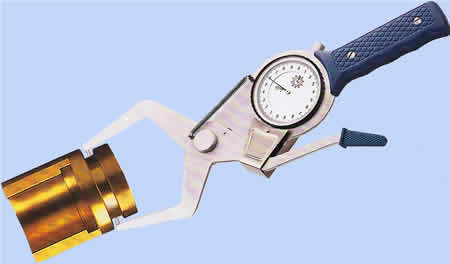

External dial caliper gage

• The external dial caliper gage with measuring

range over 200mm can be made upon request.

• The shockproof type dial caliper gage can be

supplied upon request.

External dial caliper gage
Range	Grad.	A	B	L
0-20mm	0.01mm	6mm	Ø3mm	60mm
20-40mm	0.01mm	6mm	Ø3mm	60mm
40-60mm	0.01mm	6mm	Ø3mm	55mm
60-80mm	0.01mm	6mm	Ø3mm	55mm
80-100mm	0.01mm	6mm	Ø3mm	55mm
100-120mm	0.01mm	10mm	Ø3.2mm	95mm
120-140mm	0.01mm	10mm	Ø3.2mm	95mm
140-160mm	0.01mm	10mm	Ø3.2mm	95mm
160-180mm	0.01mm	10mm	Ø3.2mm	95mm
180-200mm	0.01mm	10mm	Ø3.2mm	95mm
