Point Micrometer
Point Micrometer with Adjustable Anvil
• Protection level: IP54.Criterion:DIN40050/IEC529 standard.

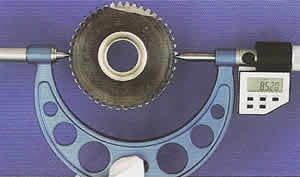

• Wide measuring range with adjustable anvil for measuring gear's root diameters.
• High accuracy interchangeable anvils enable that reading does
not have to be reset when changing anvils.
• Painted frame,Carbide-tipped measuring faces.
• Pipe combined frame for light weight and high rigidity(over 200mm/8"range)
• Wide measuring range with adjustable anvil for measuring gear's root diameters.
• High accuracy interchangeable anvils enable that reading does
not have to be reset when changing anvils.
• Painted frame,Carbide-tipped measuring faces.
• Pipe combined frame for light weight and high rigidity(over 200mm/8"range)
Type-C
Point micrometers
• Resolution:0.01mm / 0.001".
| Range | Accuracy | Point | Range | Accuracy | Point |
|---|---|---|---|---|---|
| 5-100mm / 0.2-4" | 0.005mm | 0.4mm | 500-600mm / 20-24" | 0.015mm | 0.7mm |
| 100-200mm / 4-8" | 0.007mm | 0.5mm | 600-700mm / 24-28" | 0.016mm | 0.7mm |
| 200-300mm / 8-12" | 0.009mm | 0.7mm | 700-800mm / 28-32" | 0.018mm | 0.7mm |
| 300-400mm / 12-16" | 0.011mm | 0.7mm | 800-900mm / 32-36" | 0.020mm | 0.7mm |
| 400-500mm / 16-20" | 0.013mm | 0.7mm |
Point Micrometers
• Protection level:IP54.Criterion: DIN40050/IEC529 standard.
• Carbide measuring faces.
• Painted frame.
• Carbide measuring faces.
• Painted frame.
Type-F
Point micrometers
• Resolution: 0.01mm / 0.001".
| Range | Accuracy | Range | Accuracy |
|---|---|---|---|
| 0-25mm / 0-1" | 0.004mm | 50-75mm / 2-3" | 0.005mm |
| 25-50mm / 1-2" | 0.004mm | 75-100mm / 3-4" | 0.005mm |
| Anvil's shape A,B is optional with consumer. | |||
Single Point Micrometer
The features are the same as above.
Type-J
Point micrometers
The features are the same as above.
| Range | Accuracy | Range | Accuracy |
|---|---|---|---|
| Shape C | |||
| 0-25mm / 0-1" | 0.004mm | 50-75mm / 2-3" | 0.005mm |
| 25-50mm / 1-2" | 0.004mm | 75-100mm / 3-4" | 0.005mm |
| Shape D | Shape E | ||
| 0-25mm / 0-1" | 0.004mm | 0-25mm / 0-1" | 0.004mm |
