Large Digital Linear Scale with Camera

The large digital linear scale with camera is a practical vision measurement device designed for industrial applications.

Built upon our high-precision digital linear scale, it integrates an industrial camera to deliver a non-contact, high-visibility, and true parallax-free measurement system.

If you need standard measuring ranges up to 4000 mm without a camera system, please view our Custom Large Digital Linear Scale (0–4000 mm).

Operating Principle & Process:

1. Focus & Magnify: Place workpiece under the industrial camera; adjust focus to display fine details clearly on the monitor.

2. Align & Zero: Align the screen crosshair with the starting feature of the workpiece, and press the Zero button on the digital scale.

3. Slide & Readout: Move the slider to the end point, align the screen crosshair, and read the accurate distance or deviation on the digital display.

Large Digital Linear Scale with Camera | Optical Inspection System | Sharpfine.

Key Features:

Practical Vision Measurement Device: Combines high-precision digital linear scaling with industrial camera imaging to achieve true, non-contact optical alignment while eliminating viewing angle, lens refraction, and mechanical clearance errors.
Fast In-Line Quality Control (QC): Enables instant, highly accurate dimensional comparison against nominal standard values, making it exceptionally suited for fast-paced automated production lines.
Zero Eye Strain: High-definition screen display replaces manual eyepiece inspection, significantly reducing operator fatigue during continuous inspection tasks.
Plug & Play System: Connects directly to external monitors via HDMI/VGA for stable, industrial-grade operation without needing a PC or complex software.

Primary Applications & Industries:

Smart Cards & Financial Cards: Inspection of chip/magnetic stripe positions, embossed characters, and die-cut edges.
Electronics & PCB Manufacturing: Precision checking of hole positions, trace line spacing, and linear scale graduations.
Packaging & Automated Lines: Alignment of barcodes and color marks, plus continuous in-line quality control.
Tooling, Machinery & Automotive: Fast dimensional verification and defect detection for mechanical precision parts.

Three product configurations are available:

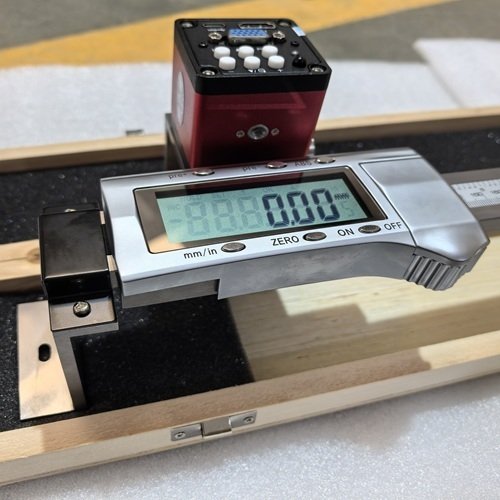

Type-A: Equipped with a built-in camera.

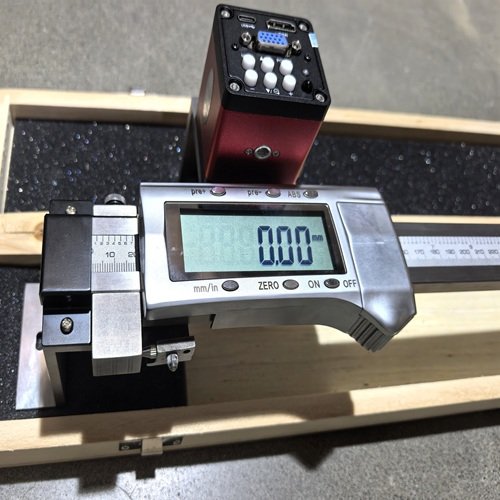

Type-B: Includes an integrated detection attachment to test and calibrate the digital linear scale’s own precision..

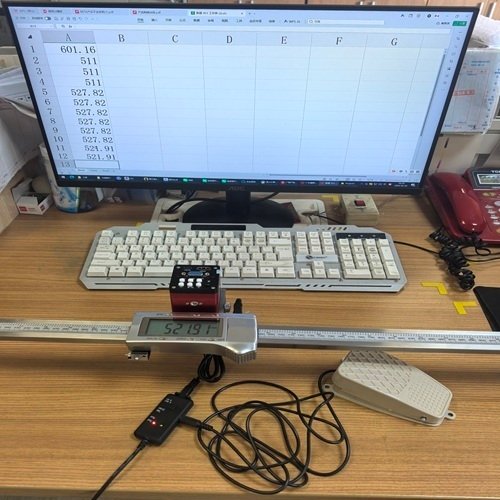

Type-C: Connects to a PC for real-time measurement data output and analysis.

Technical Specifications：

Resolution 0.01mm /.0005”.
Screw holes and brackets are available for installing.
Zero-setting at any position, convenient for relative and absolute measure conversion.
Data hold (Range ≥ 500mm)
Preset a reading at any position (Range ≥ 500mm).
mm/inch conversion at any position.
Repeatability: 0.01 mm

Features & Options

Cables and data converters for data transmission: Not included (Optional).
HDMI/VGA camera : Direct power supply (no charging required).
Manual focus adjustment via the lens ring at the bottom of the camera.

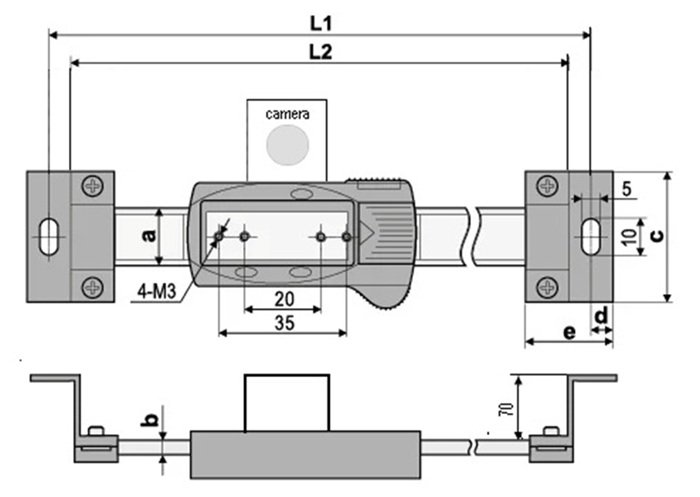

Technical Specifications Table

Digital Linear Scale with camera (mm)
Measuring range	Accuracy	L1	L2	a	b	c	d	e
0-100	±0.02	206	194	16	4	36	6	24
0-150	±0.03	256	244	16	4	36	6	24
0-200	±0.03	306	294	16	4	36	6	24
0-300	±0.04	436	424	16	4	36	6	24
0-400	±0.05	536	524	16	4	36	6	24
0-500	±0.05	670	654	24	5.5	45	8	32
0-600	±0.08	770	754	24	5.5	45	8	32
0-700	±0.08	870	854	24	5.5	45	8	32
0-800	±0.10	970	954	24	5.5	45	8	32
0-900	±0.10	1070	1054	24	5.5	45	8	32
0-1000	±0.10	1224	1204	31	10.5	60	10	40
0-1200	±0.12	1424	1404	31	10.5	60	10	40
0-1500	±0.14	1724	1704	31	10.5	60	10	40
0-2000	±0.20	2224	2204	31	10.5	60	10	40
0-2500	±0.20	2838	2818	42	12.5	60	10	40
0-3000	±0.30	3338	3318	42	12.5	60	10	40
0-4000	±0.40	4338	4318	42	12.5	60	10	40
