Bore Gauge
Bore gauge Type-A
• Dial bore gage for small dimensions.
• With 0-3mm miniature dial indicator.
• Fixed interchangeable anvils.
| Range | Grad. | Depth | Anvils | Washers | Main Body |
|---|---|---|---|---|---|

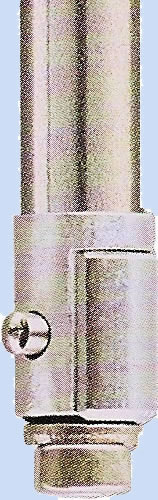

| 6-10mm | 0.01mm | 40mm | 9 | Guide | |
| 10-18mm | 0.01mm | 100mm | 9 | 1 | Board Guide |
| Depth = Measuring depth: Anvils = Interchangeable anvils. | |||||
6-10mm bore gage,10-18mm bore gage.
Bore gage Type-B
• With 0-3mm universal dial indicator.

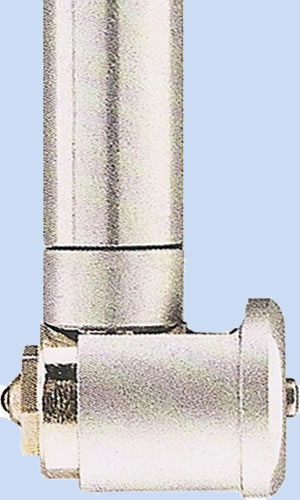

• Canister guide: Fixed interchangeable anvils.

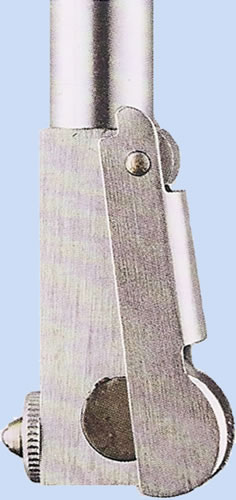

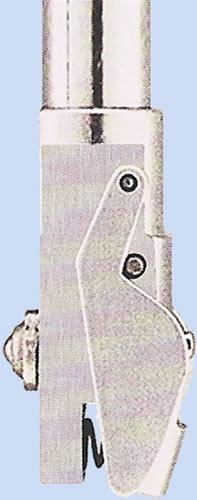

• Plate guide: screw anvils.
| Range | Grad. | Depth | Anvils | Washers | Main Body |
|---|---|---|---|---|---|
| 18-35mm | 0.01mm | 125mm | 7 | Plate Guide | |
| 18-35mm | 0.01mm | 150mm | 9 | 2 | Canister Guide |
| Depth = Measuring depth: Anvils = Interchangeable anvils. | |||||
18-35mm bore gauge
Zero-setting process of bore indicator
