Digital Indicator
In our high precision digital indicators，the adoption of absolute encoders
ensures minimal cumulative error, with a maximum deviation of only 0.002mm
(for the range 0-25.4mm/0-1" digital indicators).
The electronic indicator can be zeroed at any position for immediate
measurement and boasts strong anti-interference capabilities and
unlimited
reading speed.

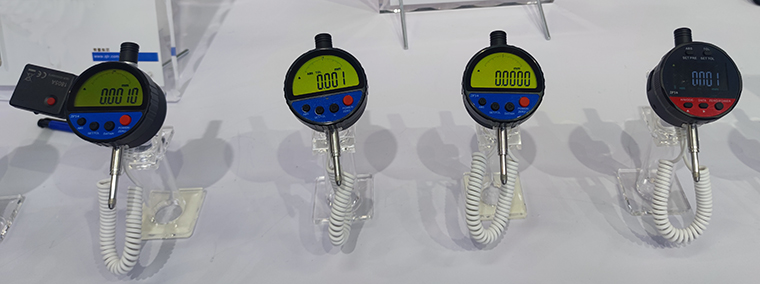

Electronic dial indicators.

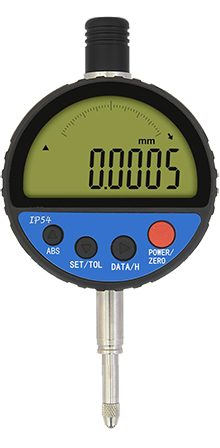

| Digital Indicator Type-A 0.0005mm/.00002" |

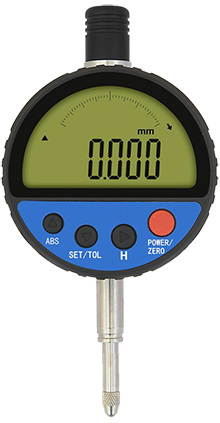

Digital Indicator Type-B 0.001mm/.00005" |

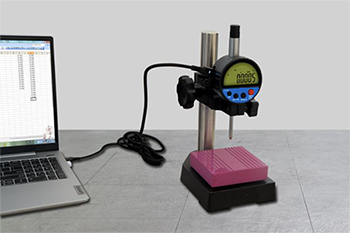

Type-A & Type-B series USB cable connection

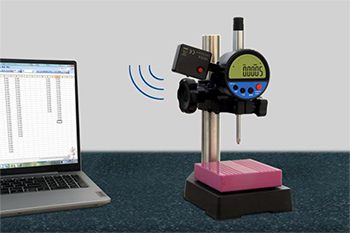

Type-A & Type-B series wireless connection
Type-A & Type-B Bluetooth Transmitter P1805A
-
Type-A,-B,-D Common Feature
- Electronic indicator technology is adopted.
- High-precision.
- 800mAH rechargeable lithium battery
- Absolute zero measuring system, real-time measurement.
- Absolute measurement or Relative measurement switchable
- Max/Min/Max-Min can be set.
- With value locking function.
- Zero setting at any position.
- Selection of measuring direction.
- Tolerance preset and out-of-tolerance alarm.
- IP54 Protection Level.
- Pointer analog display
- The dial is capable of counterclockwise rotation from -270° to 0°
- Standard Configuration USB Type-C cable data output.
- Available in option of external P1805A Bluetooth wireless transmitter,
Type-A & Type-B feature
Digital Indicator Technical Data
Type-A| Range | Resolution | Accuracy | Hysteresis | Measuring Force | Data Trans. Mode |
| 0-12.7mm/0-0.5" | 0.0005mm/.00002" | 0.002mm | 0.0015mm | ≤1.5N | USB type-C |
| 0-15mm/0-0.6" | 0.002mm | 0.0015mm | ≤1.5N | ||
| 0-25.4mm/0-1" | 0.002mm | 0.0015mm | ≤1.8N | ||
| 0-50.8mm/0-2" | 0.004mm | 0.002mm | ≤2.3N |
| Range | Resolution | Accuracy | Hysteresis | Measuring Force | Data Trans. Mode |
| 0-12.7mm/0-0.5" | 0.001mm/.00005" | 0.002mm | 0.002mm | ≤1.5N | USB type-C |
| 0-15mm/0-0.6" | 0.003mm | 0.002mm | ≤1.5N | ||
| 0-25.4mm/0-1" | 0.003mm | 0.002mm | ≤1.8N | ||
| 0-50.8mm/0-2" | 0.005mm | 0.002mm | ≤2.3N |
Digital indicator Type-D-
Type-A,-B,-D Common Feature
- Electronic indicator technology is adopted.
- High-precision.
- 800mAH rechargeable lithium battery.
- Absolute zero measuring system, real-time measurement.
- mm/inch switchable.
- Absolute measurement or Relative measurement switchable.
- Max/Min/Max-Min can be set.
- With value locking function.
- Zero setting at any position.
- Selection of measuring direction.
- Tolerance preset and out-of-tolerance alarm.
- IP54 Protection Level.
-
Type-D feature
- The standard configuration includes a built-in Bluetooth HID data transmission module.
- The large LCD color screen display employs different colors for various functions,enhancing user intuition.
- Resolution 0.001mm/.00005" can switch to 0.0005mm/.00002" .
- The dial is capable of clockwise rotation from 0° to 180° and counterclockwise rotation from -90° to 0°.
- Standard Configuration in-built Bluetooth wireless transmission.
- Available in option of USB Type-C data output cable transmission,
Digital Indicator Technical Data
Type- D ( Resolution can be Switched)
| Range | Resolution | Accuracy | Hysteresis | Measuring Force | Data Trans. Mode |
| 0-12.7mm/0-0.5" | 0.0005mm/.00002" can switch to: 0.001mm/.00005 |
0.002mm | 0.0015mm | ≤1.5N | Blue Tooth |
| 0-15mm/0-0.6" | 0.002mm | 0.0015mm | ≤1.5N | ||
| 0-25.4mm/0-1" | 0.002mm | 0.0015mm | ≤1.8N | ||
| 0-50.8mm/0-2" | 0.004mm | 0.002mm | ≤2.3N |

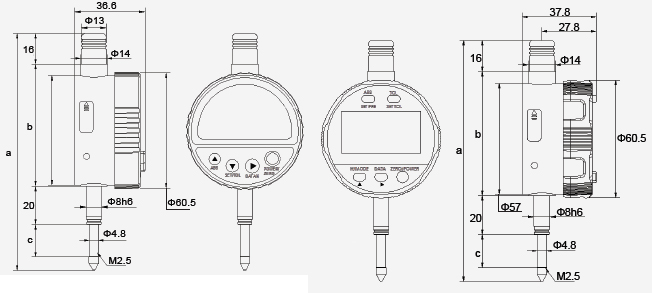

Digital Dial Indicator Main dimensional sketch
| Electronic indicator Type-A & Type-B | Electronic indicator Type-D |
Digital indicator Principal dimension
| Range | a | b | c |
| 0-12.7mm/0-0.5" | 123.7mm | 63.5mm | 17.0mm |
| 0-15mm/0-0.6" | 123.7mm | 63.5mm | 17.0mm |
| 0-25.4mm/0-1" | 151.7mm | 81.0mm | 27.7mm |
| 0-50.8mm/0-2" | 222.2mm | 126.0mm | 53.2mm |
