High Precision Digital Height Gauge
Our Digital Height Gauge, a high-precision height measuring instrument was designed for the precision measurement of automotive engine parts, electronic connectors, aerospace and other fields.
With one ten-thousandth resolution, ensuring stable accuracy and guaranteed repeatability，ranging display values from 1μm to 0.1μm, our high precision height gauge is the solution for your exacting measurement requirements.

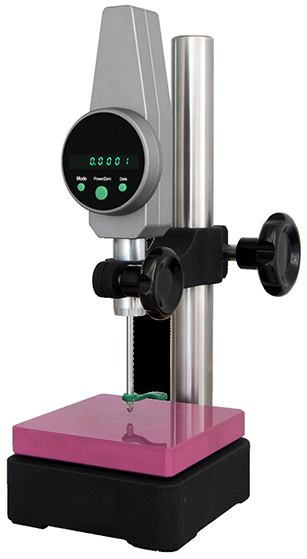

Digital Height Gauge 0.0001mm/.000005"with ceramic base

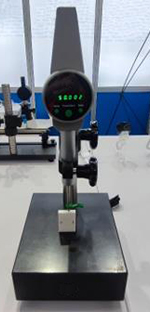

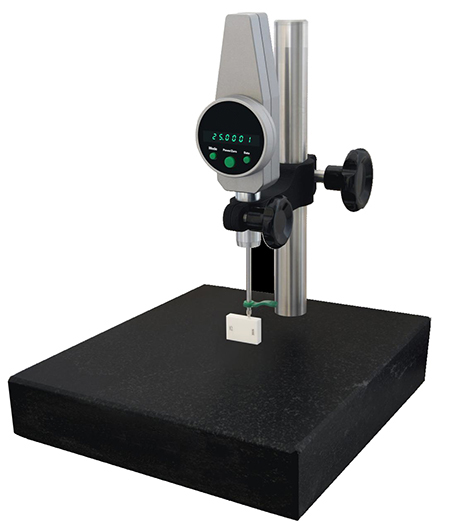

Digital Height Gauge 0.001mm/.00005" with granite base
Digital height gauge data transmission
Dial height gauge case
Digital height gauge blue tooth data transmission

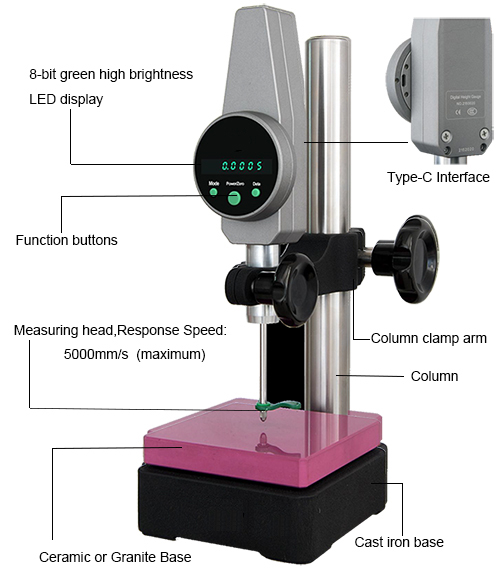

Precision Digital Height Gauge
-
Resolution:
0.0001mm/.000005"
0.0005mm/.00002"
0.001mm/.00005" -
High Response Speed:
5000mm/s （maximum） - Reset to zero at any position.

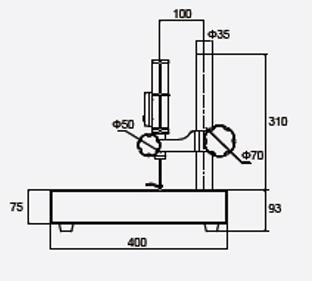

- Standard column： Φ35x310mm
- Customizable column : Φ35x410mm.
- Measuring force:
≤1.2N (for 0-50mm/0-1.969")
≤1.6N (for 0-100mm/0-3.937") - Support data transmission and blue
tooth data transmission. - Built in 1800mAH lithium battery
(ONLY for blue tooth). - Open communication protocol.
- Interchangeable measuring head.
- Resolution switchable.
- Available in option of multiple bases.
- Customizable column clamp arm size.
- Available in option of power bank.
- Available in option of built-in lithium battery.
Features
130×130 ceramic base100 column clamp arm
250×200 granite base100 column clamp arm
400×300 granite base100 column clamp arm
Digital height gauge specifications and parameters
Resolution ： 0.0001mm/.000005" （ can Switch to ： 0.001mm/.00005"）
| Code | Range | Accuracy | Repeatability | Data Trans. Mode | Base & Mterial |
| SF32-02-100 | 0-50mm/0-1.969" | ≤0.001mm | ≤0.0002mm | USB Type-C | 130mm×130mm ceramic |
| SF32-02-300 | 0-50mm/0-1.969" | ≤0.001mm | ≤0.0002mm | 400mm×300mm granite | |
| SF32-04-100 | 0-100mm/0-3.937" | ≤0.002mm | ≤0.0004mm | 130mm×130mm ceramic | |
| SF32-04-200 | 0-100mm/0-3.937" | ≤0.002mm | ≤0.0004mm | 400mm×300mm granite | |
| SF32-12-100 | 0-50mm/0-1.969" | ≤0.001mm | ≤0.0002mm | Blue Tooth | 130mm×130mm ceramic |
| SF32-12-300 | 0-50mm/0-1.969" | ≤0.001mm | ≤0.0002mm | 400mm×300mm granite | |
| SF32-14-100 | 0-100mm/0-3.937" | ≤0.002mm | ≤0.0004mm | 130mm×130mm ceramic | |
| SF32-14-200 | 0-100mm/0-3.937" | ≤0.002mm | ≤0.0004mm | 400mm×300mm granite | |
Resolution ： 0.0005mm/.00002" （ can Switch to ： 0.001mm/.00005"）
| Code | Range | Accuracy | Repeatability | Data Trans. Mode | Base & Mterial |
| SF32-02-000 | 0-50mm/0-1.969" | ≤0.002mm | ≤0.0005mm | USB Type-C | 130mm×130mm ceramic |
| SF32-02-200 | 0-50mm/0-1.969" | ≤0.002mm | ≤0.0005mm | 400mm×300mm granite | |
| SF32-04-000 | 0-100mm/0-3.937" | ≤0.003mm | ≤0.001mm | &130mm×130mm ceramic | |
| SF32-04-300 | 0-100mm/0-3.937" | ≤0.003mm | ≤0.001mm | 400mm×300mm granite | |
| SF32-12-000 | 0-50mm/0-1.969" | ≤0.002mm | &≤0.0005mm | Blue Tooth | 130mm×130mm ceramic |
| SF32-12-200 | 0-50mm/0-1.969" | ≤0.002mm | ≤0.0005mm | 400mm×300mm granite | |
| SF32-14-000 | 0-100mm/0-3.937" | ≤0.003mm | ≤0.001mm | 130mm×130mm ceramic | |
| SF32-14-300 | 0-100mm/0-3.937" | ≤0.003mm | ≤0.001mm | 400mm×300mm granite | |
Resolution ： 0.001mm/.0005"
| Code | Range | Accuracy | Repeatability | Data Trans. Mode | Base & Mterial |
| SF32-02-010 | 0-50mm/0-1.969" | ≤0.003mm | ≤0.001mm | USB Type-C | 130mm×130mm ceramic |
| SF32-02-210 | 0-50mm/0-1.969" | ≤0.003mm | ≤0.001mm | 400mm×300mm granite | |
| SF32-02-410 | 0-50mm/0-1.969" | ≤0.003mm | ≤0.001mm | 250mm×200mm granite | |
| SF32-04-010 | 0-100mm/0-3.937" | ≤0.004mm | ≤0.002mm | 130mm×130mm ceramic | |
| SF32-04-210 | 0-100mm/0-3.937" | ≤0.004mm | ≤0.002mm | 400mm×300mm granite | |
| SF32-04-410 | &0-100mm/0-3.937" | ≤0.004mm | ≤0.002mm | 250mm×200mm granite | |
| SF32-12-010 | 0-50mm/0-1.969" | ≤0.003mm | ≤0.001mm | Blue Tooth | 130mm×130mm ceramic |
| SF32-12-210 | 0-50mm/0-1.969" | ≤0.003mm | ≤0.001mm | 400mm×300mm granite | |
| SF32-12-410 | 0-50mm/0-1.969" | ≤0.003mm | ≤0.001mm | 250mm×200mm granite | |
| SF32-14-010 | 0-100mm/0-3.937" | ≤0.004mm | ≤0.002mm | 130mm×130mm ceramic | |
| SF32-14-210 | 0-100mm/0-3.937" | ≤0.004mm | ≤0.002mm | 400mm×300mm granite | |
| SF32-14-410 | 0-100mm/0-3.937" | ≤0.004mm | ≤0.002mm | 250mm×200mm granite | |
- Input:: AC 100~240V 50~60Hz
- Output:: DC 5V/1A
-
Working Condition:
Tempreture: 0~40°C
Humidity: 20~80%
Power supply
- Digital Indicator
- Gauge Stand
- Mearsuring head with ball contact point
- The power adapter
Standard Configuration:
- Special-shaped measuring head
- power bank
Options:
Precision digital height gauge Measuring head
Three options of measuring heads in application to different measurements.
Mearsuring head with ball contact point

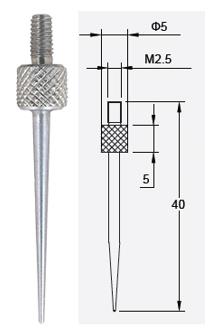

P1 Measuring head with needle point
(Optional Accessory)
P2 Measuring head with cylinder point
(Optional Accessory)

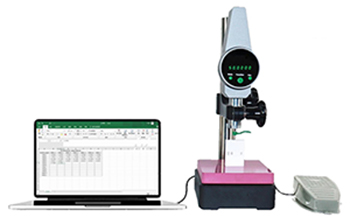

Data Transmission

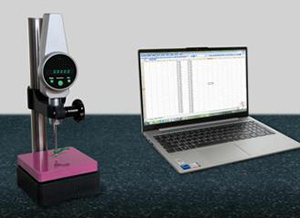

Digital heighe gauge Cable Connection

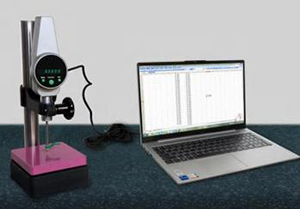

Digital height gauge will be recognized by the computer
as a HID device，similar to a virtual keyboard, the measurement
data will be automatically typed into software such as Excel,Word
or Notepad etc by operation of the keyboard in real time, no need
to manually enter or save by other softwares.
- Hold down the Data key to access Bluetooth Settings.
- Press the Data key and select Bluetooth On, Off and Reset (RST) three modes in a loop.
- Hold down the Data key to select and exit the Bluetooth setting mode.
- Tap on the PC to connect to Bluetooth.
Set Bluetooth wireless connection with ONE button

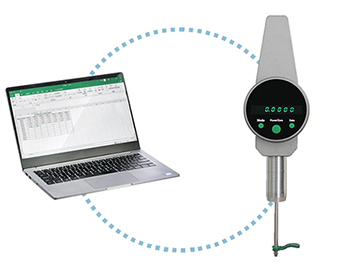

Digital height gauge Wireless Connection
Cable Connection Components P2101
| Adapter | Cables | Foot Switch |
| Large diameter bore gauge | range: up to φ1500mm |
| Digital height gauge | Range : up to 2000mm / 80" |
| Venier Height Gauge | Range : up to 2000mm / 80" |
| Dial Height Gauge | Range : up to 600mm |
