Large Micrometers

Large micrometers:large micrometer with adjustable anvil,large micrometer with adjustable anvil (caliper type) and large micrometers with interchangeable anvils.

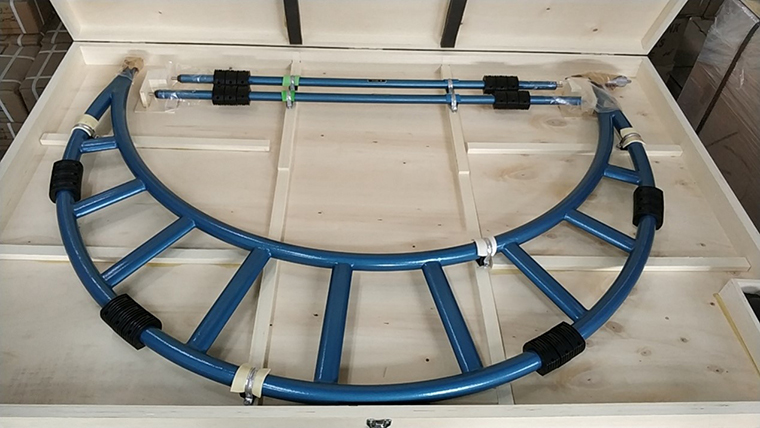

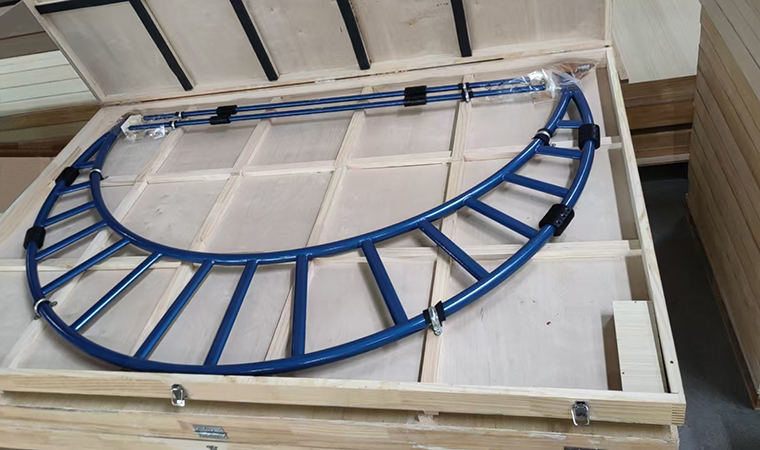

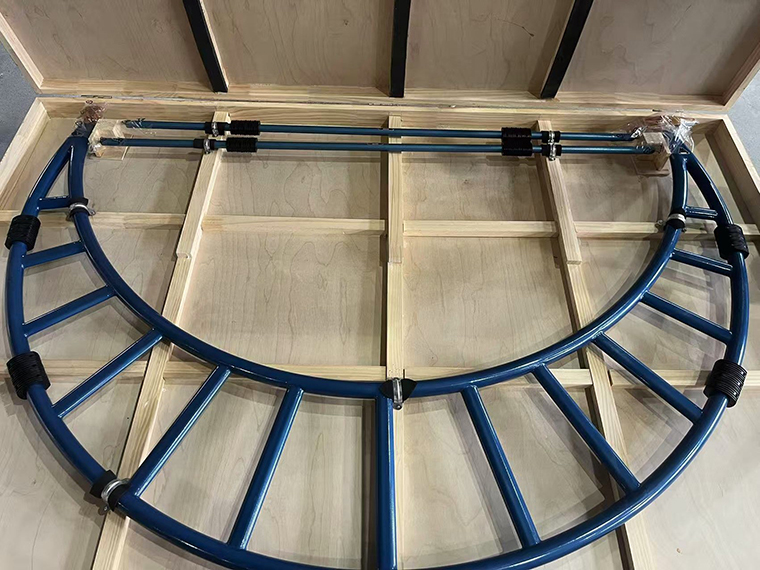

Large Micrometer with Adjustable Anvil

Large micrometer Large micrometer
Type-A
• Wide measuring range with adjustable anvil.High accuracy standard collars enable that
  reading does not have to be reset when changing collars.
Standard collars: Within 1000mm/40": 25mm/1",50mm/2"; Over 1000mm/40": 50mm/2",100mm/4".
• Carbide measuring faces;Pipe combined frame.
• Resolution:0.01mm / 0.001".
Large micrometer with adjustable anvil Type-A
RangeAccuracyRangeAccuracy
Travel of micrometer head: 25mm/1":Micrometer thread pitch: 0.5mm/0.025".
300-400mm / 12-16"0.011mm 700-800mm / 28-32"0.018mmm
400-500mm / 16-20"0.013mm 800-900mm / 32-36"0.020mm
500-600mm / 20-24"0.015mm 900-1000mm / 36-40"0.020mm
600-700mm / 24-28"0.016mm
Travel of micrometer head: 50mm/1"; Micrometer thread pitch: 1mm/0.05".
1000-1200mm / 40-48"0.020mm 2000-2200mm / 80-88"0.040mm
1200-1400mm / 48-56"0.024mm 2200-2400mm / 88-96"0.044mm
1400-1600mm / 56-64"0.028mm 2400-2600mm / 96-104"0.048mm
1600-1800mm / 64-72"0.031mm 2600-2800mm / 104-112"0.052mm
1800-2000mm / 72-80"0.034mm 2800-3000mm / 112-120"0.056mm
16" large micrometer . . . , 40" large micrometer. . ., 120" large micrometer.

Large Micrometer with Adjustable Anvil (Caliper Type)

Large micrometer

Type-B
Large micrometer
• Similar to caliper in outside measurement.
• Caliper-type pipe combined frame for light weight and high rigidity.
• Wide measuring range with adjustable anvil.High accuracy standard collars enable that
  reading does not have to be reset when changing collars.
• Travel of micrometer head: 50mm/2";Micrometer thread pitch: 1mm/0.025";Throat depth:350mm/14".
Standard collars: 50mm/2",100mm/4".
• Carbide measuring faces;Ratchet stop.
• Resolution:0.01mm / 0.001".
Large micrometer with adjustable anvil Type-B
RangeAccuracyRangeAccuracy
1000-1200mm / 40-48"0.020mm 2000-2200mm / 80-88"0.040mm
1200-1400mm / 48-56"0.024mm 2200-2400mm / 88-96"0.044mm
1400-1600mm / 56-64"0.028mm 2400-2600mm / 96-104"0.048mm
1600-1800mm / 64-72"0.031mm 2600-2800mm / 104-112"0.052mm
1800-2000mm / 72-80"0.034mm 2800-3000mm / 112-120"0.056mm
Travel of micrometer head: 50mm/2":Micrometer thread pitch:1mm/0.05".
48" large micrometers . . . ,120" large micrometers.

Large Micrometers with Interchangeable Anvils

Large micrometers Large micrometers Type-C

• Pipe combined frame.

• Resolution:0.01mm / 0.001".
Large micrometers with interchangeable anvils Type-C
RangeAccuracyRangeAccuracy
300-400mm / 12-16"0.011mm 900-1000mm / 36-40"0.020mm
400-500mm / 16-20"0.013mm 300-450mm / 12-18" 0.011mm
500-600mm / 20-24"0.015mm 450-600mm / 18-24"0.015mm
600-700mm / 24-28"0.016mm 600-750mm / 24-30" 0.016mm
700-800mm / 28-32"0.018mm 750-900mm / 30-36"0.020mm
800-900mm / 32-36"0.020mm 900-1050mm / 36-42" 0.021mm
16" large micrometers . . . ,42" large micrometers.
