Large Vernier Caliper

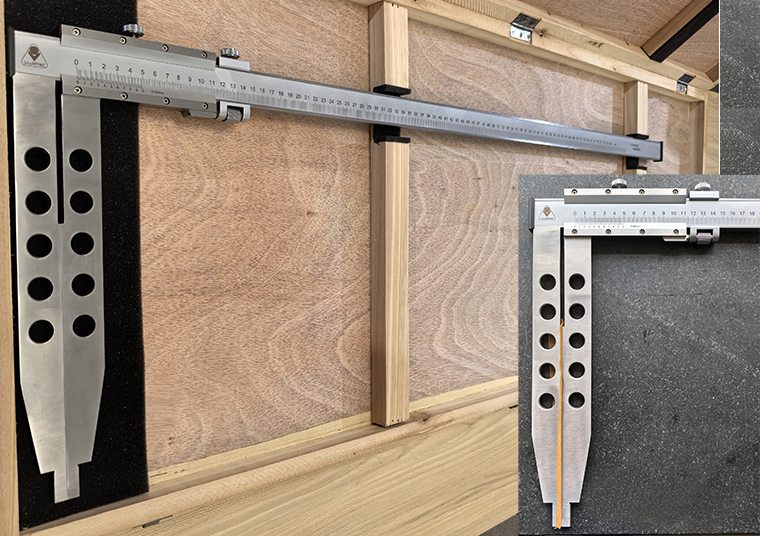

Large vernier caliper Type-A1 Large vernier calipers
• With fine adjustment.
• Made of stainless steel or carbon steel.
Mono-block large vernier caliper Type-A2 Large vernier calipers

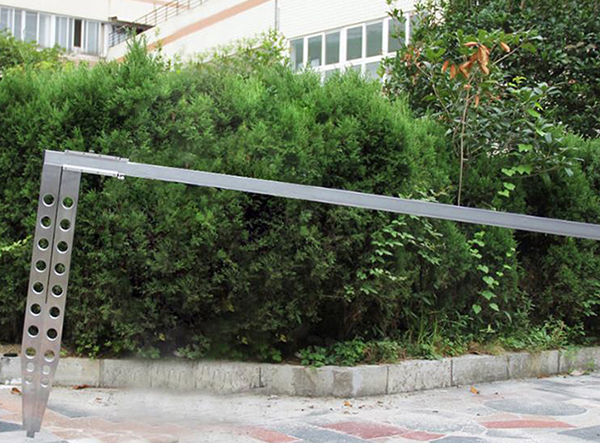

Large verner caliper
Large vernier calipers 20" vernier caliper,  24" vernier caliper,

32" vernier caliper,  40" vernier caliper,

60" vernier caliper,  80" vernier caliper,

(100" vernier caliper),  120" vernier caliper.
Large vernier calipers Type-A1 Type-A2
RangeGradA (mm)B CD HAccuracy (mm)
 (mm)Normal JawLong Jaw(mm) (mm)(mm)(mm)Normal JawLong Jaw
0-200mm 0.05 60 90 10 10 17 36.5 ±0.05 ±0.06
0-300mm 0.05 60 90 10 10 17 36.5 ±0.06 ±0.10
0-500mm 0.05 100 / 125 150 10 12 25 55 ±0.07 ±0.10
0-600mm 0.05 100 / 125 150 10 12 25 55 ±0.08 ±0.13
0-800mm 0.05 125 / 150 200 20 18 32 64 ±0.09 ±0.14
0-1000mm 0.05 125 / 150 200 20 18 32 64 ±0.10 ±0.14
0-1500mm 0.05 125 / 150 200 20/30 20 32 73 ±0.16 ±0.18
0-2000mm 0.05 150 / 200 300 20/30 20 52 73 ±0.20 ±0.26
0-3000mm 0.05 150 / 200 300 20/30 20 52 73 ±0.31 ±0.35

0-200mm 0.02 60 90 10 10 17 36.5 ±0.03 ±0.04
0-300mm 0.02 60 90 10 10 17 36.5 ±0.04 ±0.06
0-500mm 0.02 100 / 125 150 10 12 25 55 ±0.05 ±0.08
0-600mm 0.02 100 / 125 150 10 12 25 55 ±0.05 ±0.10
0-800mm 0.02 125 / 150 200 20 18 32 64 ±0.06 ±0.11
0-1000mm 0.02 125 / 150 200 20 18 32 64 ±0.07 ±0.11
0-1500mm 0.02 125 / 150 200 30 20 32 73 ±0.11 ±0.13
0-2000mm 0.02 150 / 200 300 30 20 52 73 ±0.14 ±0.20
0-3000mm 0.02 150 / 200 300 30 20 52 73 ±0.26 ±0.35

0-200mm / 8" 0.05 / 1/128" 60 90 10 10 17 36.5 ±0.05 ±0.06
0-300mm / 12" 0.05 / 1/128" 60 90 10 10 17 36.5 ±0.06 ±0.10
0-500mm / 20" 0.05 / 1/128" 100 / 125 150 10 12 25 55 ±0.07 ±0.10
0-600mm / 24" 0.05 / 1/128" 100 / 125 150 10 12 25 55 ±0.08 ±0.13
0-800mm / 32" 0.05 / 1/128" 125 / 150 200 20 18 32 64 ±0.09 ±0.14
0-1000mm / 40" 0.05 / 1/128" 125 / 150 200 20 18 32 64 ±0.10 ±0.14
0-1500mm / 60" 0.05 / 1/128" 125 / 150 200 30 20 32 73 ±0.16 ±0.18
0-2000mm / 80" 0.05 / 1/128" 150 / 200 300 30 20 52 73 ±0.20 ±0.26
0-3000mm / 120" 0.05 / 1/128" 150 / 200 300 30 20 52 73 ±0.31 ±0.35

0-200mm / 8" 0.02 / 0.001" 60 90 10 10 17 36.5 ±0.03 ±0.04
0-300mm / 12" 0.02 / 0.001" 60 90 10 10 17 36.5 ±0.04 ±0.06
0-500mm / 20" 0.02 / 0.001" 100 / 125 150 10 12 25 55 ±0.05 ±0.08
0-600mm / 24" 0.02 / 0.001" 100 / 125 150 10 12 25 55 ±0.05 ±0.10
0-800mm / 32" 0.02 / 0.001" 125 / 150 200 20 18 32 64 ±0.06 ±0.11
0-1000mm / 40" 0.02 / 0.001" 125 / 150 200 20 18 32 64 ±0.07 ±0.11
0-1500mm / 60" 0.02 / 0.001" 125 / 150 200 30 20 32 73 ±0.11 ±0.13
0-2000mm / 80" 0.02 / 0.001" 150 / 200 300 30 20 52 73 ±0.14 ±0.20
0-3000mm / 120" 0.02/0.001" 150 / 200 300 30 20 52 73 ±0.26 ±0.35
Large vernier calipers Type-B1 Large vernier calipers
• With fine adjustment.
• With step measurement.
• Made of stainless steel or carbon steel.
Large vernier calipers Type-B2 Mono-block large vernier calipers.
Large vernier calipers Type-B1 Type-B2
RangeGradA (mm)B CDAccuracy (mm)
 (mm)Normal Jaw Long Jaw (mm) (mm)(mm) Normal Jaw  Long Jaw
0-200mm 0.05 60 90 10 10 17 ±0.05 ±0.06
0-300mm 0.05 60 90 10 10 17 ±0.05 ±0.06
0-500mm 0.05 100 / 125 150 10 12 25 ±0.07 ±0.10
0-600mm 0.05 100 / 125 150 10 12 25 ±0.08 ±0.13
0-800mm 0.05 125 /150 200 20 18 32 ±0.09 ±0.14
0-1000mm 0.05 125 /150 200 20 18 32 ±0.10 ±0.14
0-1500mm 0.05 125 / 150 200 20 / 30 20 32 ±0.16 ±0.18
0-2000mm 0.05 150 / 200 300 20 / 30 20 52 ±0.20 ±0.26
0-2500mm 0.05 150 / 200 300 20 / 30 20 52 ±0.24 ±0.30
0-3000mm 0.05 150 / 200 300 20 / 30 20 52 ±0.31 ±0.35
0-4000mm 0.05 250 / 280   20 20 52
0-5000mm 0.05 250 / 280   20 20 52
0-6000mm 0.05 250 / 280   20 20 52

0-200mm 0.02 60 90 10 10 17 ±0.03 ±0.04
0-300mm 0.02 60 90 10 10 17 ±0.04 ±0.06
0-500mm 0.02 100 / 125 150 10 12 25 ±0.05 ±0.08
0-600mm 0.02 100 / 125 150 10 12 25 ±0.05 ±0.10
0-800mm 0.02 125 / 150 200 20 18 32 ±0.06 ±0.11
0-1000mm 0.02 125 / 150 200 20 18 32 ±0.07 ±0.11
0-1500mm 0.02 125 / 150 200 20 / 30 20 32 ±0.11 ±0.13
0-2000mm 0.02 150 / 200 300 20 / 30 20 52 ±0.14 ±0.20
0-2500mm 0.02 150 / 200 300 20 / 30 20 52 ±0.22 ±0.30
0-3000mm 0.02 150 / 200 300 20 / 30 20 52 ±0.26 ±0.35
0-4000mm 0.05 250 / 280   20 20 52
0-5000mm 0.05 250 / 280   20 20 52
0-6000mm 0.05 250 / 280   20 20 52

0-200mm / 8" 0.05 / 1/128" 60 90 10 10 17 ±0.05 ±0.06
0-300mm / 12" 0.05 / 1/128" 60 90 10 10 17 ±0.05 ±0.06
0-500mm / 20" 0.05 / 1/128" 100 150 10 12 25 ±0.07 ±0.10
0-600mm / 24" 0.05 / 1/128" 100 150 10 12 25 ±0.08 ±0.13
0-800mm / 32" 0.05 / 1/128" 125 200 20 18 32 ±0.09 ±0.14
0-1000mm / 40" 0.05 / 1/128" 125 200 20 18 32 ±0.10 ±0.14
0-1500mm / 60" 0.05 / 1/128" 125 200 20 / 30 20 32 ±0.16 ±0.18
0-2000mm / 80" 0.05 / 1/128" 150 300 20 / 30 20 52 ±0.20 ±0.26
0-2500mm / 100" 0.05 / 1/128" 150 300 20 / 30 20 52 ±0.24 ±0.30
0-3000mm / 120" 0.05 / 1/128" 150 300 20 / 30 20 52 ±0.31 ±0.35
0-4000mm 0.05 250 / 280   20 20 52   ±0.35
0-5000mm 0.05 250 / 280   20 20 52
0-6000mm 0.05 250 / 280   20 20 52

0-200mm / 8" 0.02 / 0.001" 60 90 10 10 17 ±0.03 ±0.04
0-300mm / 12" 0.02 / 0.001" 60 90 10 10 17 ±0.04 ±0.06
0-500mm / 20" 0.02 / 0.001" 100 / 125 150 10 12 25 ±0.05 ±0.08
0-600mm / 24" 0.02 / 0.001" 100 / 125 150 10 12 25 ±0.05 ±0.10
0-800mm / 32" 0.02 / 0.001" 125 / 150 200 20 18 32 ±0.06 ±0.11
0-1000mm / 40" 0.02 / 0.001" 125 / 150 200 20 18 32 ±0.07 ±0.11
0-1500mm / 60" 0.02 / 0.001" 125 / 150 200 20 / 30 20 32 ±0.11 ±0.13
0-2000mm / 80" 0.02 / 0.001" 150 / 200 300 20 / 30 20 32 ±0.14 ±0.20
0-2500mm / 100" 0.02 / 0.001" 150 ./ 200 300 20 / 30 20 52 ±0.22 ±0.30
0-3000mm / 120" 0.02 / 0.001" 150 / 200 300 20 / 30 20 52 ±0.26 ±0.35
0-4000mm 0.05 250 / 280   20 20 52
0-5000mm 0.05 250 / 280   20 20 52
0-6000mm 0.05 250 / 280   20 20 52
Large vernier caliper Type-C1 Large vernier caliper
Mono-block large vernier caliper Type-C2 Large vennier caliper
• With fine adjustment.
• Made of stainless steel or carbon steel.

Large vernier caliper Type-C1 Type-C2
RangeGradA (mm)BCD HAccuracy (mm)
 (mm)Normal JawLong Jaw(mm) (mm)(mm)(mm)Normal JawLong Jaw
0-200mm 0.05 60 90 10 10 17 22 ±0.05 ±0.06
0-300mm 0.05 60 90 10 10 17 22 ±0.06 ±0.10
0-500mm 0.05 100 / 125 150 10 12 25 40 ±0.07 ±0.10
0-600mm 0.05 100 / 125 150 10 12 25 40 ±0.08 ±0.13
0-800mm 0.05 125 / 150 200 20 18 32 47 ±0.09 ±0.14
0-1000mm 0.05 125 / 150 200 20 18 32 47 ±0.10 ±0.14
0-1500mm 0.05 125 / 150 200 20/30 20 32 47/54 ±0.16 ±0.18
0-2000mm 0.05 150 / 200 300 20/30 20 52 54 ±0.20 ±0.26
0-2500mm 0.05 150 / 200 300 20/30 20 52 73 ±0.24 ±0.30
0-3000mm 0.05 150 / 200 300 20/30 20 52 73 ±0.31 ±0.35

0-200mm 0.02 60 90 10 10 17 22 ±0.03 ±0.04
0-300mm 0.02 60 90 10 10 17 22 ±0.04 ±0.06
0-500mm 0.02 100 / 125 150 10 12 25 40 ±0.05 ±0.08
0-600mm 0.02 100 / 125 150 10 12 25 40 ±0.05 ±0.10
0-800mm 0.02 125 / 150 200 20 18 32 47 ±0.06 ±0.11
0-1000mm 0.02 125 / 150 200 20 18 32 47 ±0.07 ±0.11
0-1500mm 0.02 125 / 150 200 20/30 20 32 47/54 ±0.11 ±0.13
0-2000mm 0.02 150 / 200 300 20/30 20 52 54 ±0.14 ±0.20
0-2500mm 0.02 150 / 150 300 20/30 20 52 73 ±0.22 ±0.30
0-3000mm 0.02 150 / 200 300 20/30 20 52 73 ±0.26 ±0.35

0-200mm / 8" 0.05 / 1/128" 60 90 10 10 17 22 ±0.05 ±0.06
0-300mm / 12" 0.05 / 1/128" 60 90 10 10 17 22 ±0.06 ±0.10
0-500mm / 20" 0.05 / 1/128" 100/125 150 10 12 25 40 ±0.07 ±0.10
0-600mm / 24" 0.05 / 1/128" 100/125 150 10 12 25 40 ±0.08 ±0.13
0-800mm / 32" 0.05 / 1/128" 125/150 200 20 18 32 47 ±0.09 ±0.14
0-1000mm / 40" 0.05 / 1/128" 125/150 200 20 18 32 47 ±0.10 ±0.14
0-1500mm / 60" 0.05 / 1/128" 125/150 200 20/30 20 32 47/54 ±0.16 ±0.18
0-2000mm / 80" 0.05 / 1/128" 150/200 300 20/30 20 52 54 ±0.20 ±0.26
0-2500mm / 100" 0.05 / 1/128" 125/150 300 20/30 20 52 73 ±0.24 ±0.30
0-3000mm / 120" 0.05 / 1/128" 150/200 300 20/30 20 52 73 ±0.31 ±0.35

0-200mm / 8" 0.02 / 0.001" 60 90 10 10 17 22 ±0.03 ±0.04
0-300mm / 12" 0.02 / 0.001" 60 90 10 10 17 22 ±0.04 ±0.06
0-500mm / 20" 0.02 / 0.001" 100/125 150 10 12 25 40 ±0.05 ±0.08
0-600mm / 24" 0.02 / 0.001" 100/125 150 10 12 25 40 ±0.05 ±0.10
0-800mm / 32" 0.02 / 0.001" 125/150 200 20 18 32 47 ±0.06 ±0.11
0-1000mm / 40" 0.02 / 0.001" 125/150 200 20 18 32 47 ±0.07 ±0.11
0-1500mm / 60" 0.02 / 0.001" 125/150 200 20/30 20 32 47/54 ±0.11 ±0.13
0-2000mm / 80" 0.02 / 0.001" 150/200 300 20/30 20 52 54 ±0.14 ±0.20
0-2500mm / 100" 0.02 / 0.001" 150/200 300 20/30 20 52 73 ±0.22 ±0.30
0-3000mm / 120" 0.02 / 0.001" 150/200 300 20/30 20 52 73 ±0.26 ±0.35
